WRE-0350-RD - Datasheet
MBA
Category Information

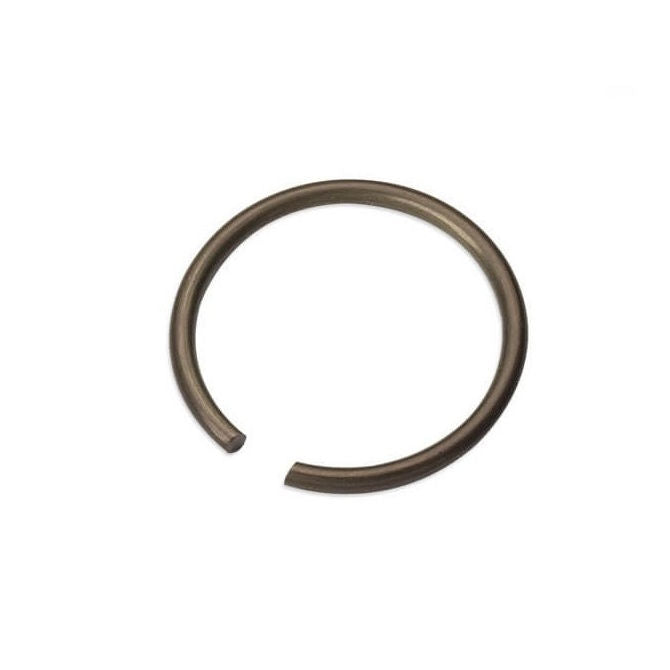

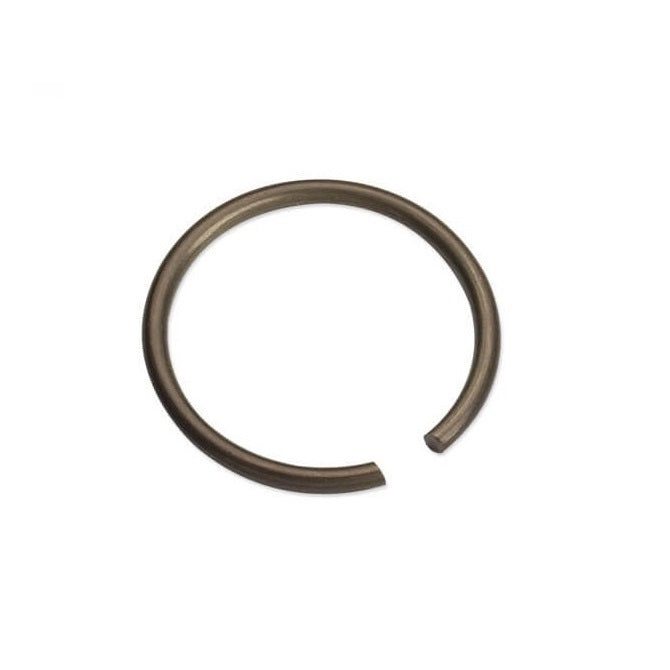

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data
- Shaft Diameter (Ds)
:
35.00
mm
(Equiv. 1.378 in.) - Clip Thickness (T)
2.50
mm
(Equiv. 0.098 in.) - Groove Dia. (Dg)
32.4
mm
+ 0 / - 0.60
(Equiv. 1.276 in.) - Approx. Loose Circlip ID (A) 32.1 mm
- Radial Wall (S) min/max 32.4 mm +/- 0.10
- Groove Width (W) 2.8 mm Min.
- Free Outside Dia (Dr) 37.1
- Section Profile Round Section
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DRP-035
- DRP035
