P-020G-035-150A - Datasheet
MBA
Category Information

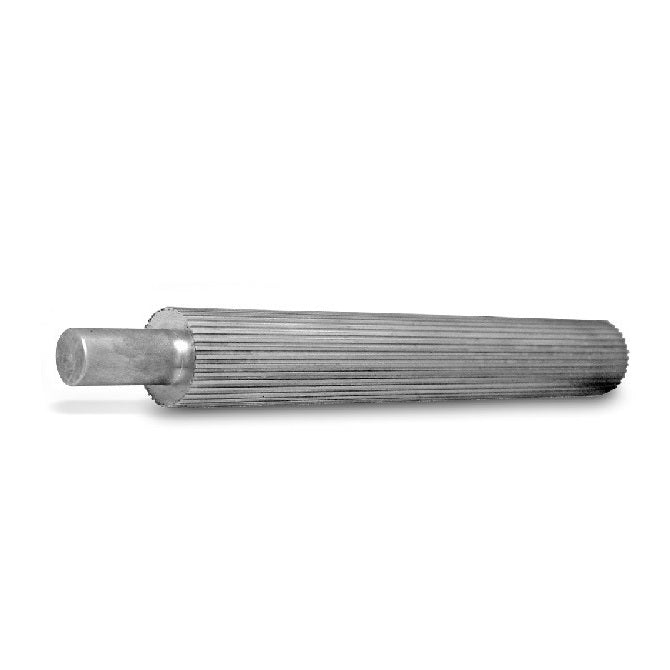

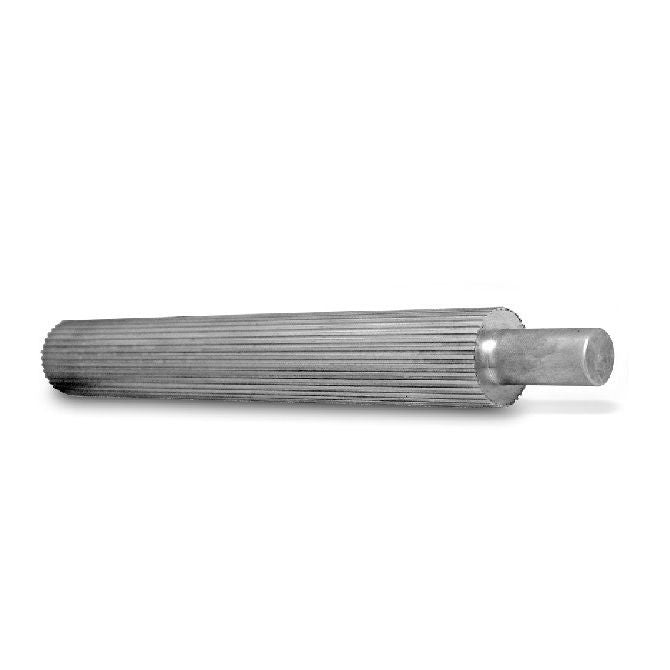

Pulleys - Metric Timing Stock - 2.000mm Pitch - GT - AluminiumAluminium GT 2.000mm Pitch Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
- Use with GT2 or GT3 type belts.
Product Data
- Number of Teeth : 35
- Min. Usable Length (L)
150.0
mm
(Equiv. 5.906 in.) - Pitch Diameter (PD)
22.30
mm
(Equiv. 0.878 in.) - Outside Diameter (OD) 21.80 mm
- Shank Diameter (D1) 13.00 mm
- Shank Length (Sl) 19.0 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 35-2P-PS6A
- A6A50M035GT15
- 352PPS6A
