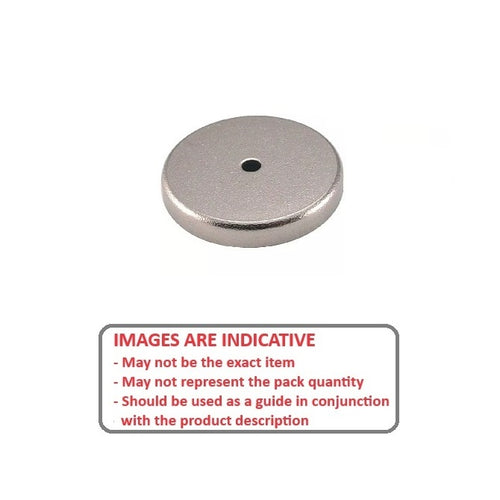

MAG-CP-036-07-10-H - Datasheet
MBA
Category Information
Magnets - Cup Assemblies Through HoleCup Assemblies Through Hole Magnets. This is the main category in this series
Product Data

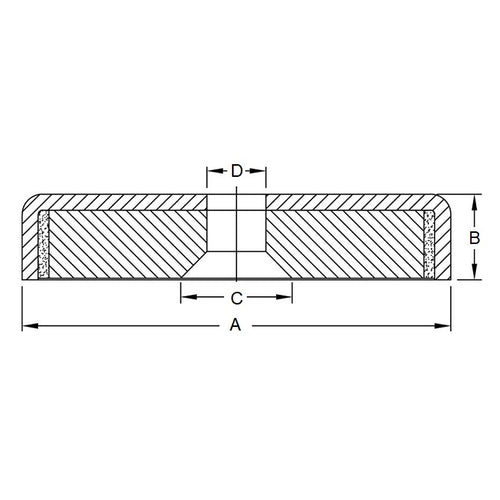

- Diameter (A)
:
35.81
mm
(Equiv. 1.41 in.) - Thickness (B)
7.14
mm
(Equiv. 0.281 in.) - Hole Recess (C)
9.53
mm
(Equiv. 0.375 in.) - Hole Top Diameter (D) 4.76 mm
- Holding Value 10 Kg
Product Compliance and Data
Additional Resources
Cross References
- IM-328
- IM328
