MAG-CP-036-52-10-CL - Datasheet

MBA

Category Information

Magnets - Cup Assemblies with Clips

Cup Assemblies with Clips Magnets. This is the main category in this series

    Product Data

    • Diameter (A) : 35.81 mm
      (Equiv. 1.41 in.)
    • Overall Height 51.56 mm
      (Equiv. 2.03 in.)
    • Clip Style Option 1
    • Clip Material Stainless Steel
    • Max Holding Value 9.98 kg
    • Opening Range 22.35 - 28.70 mm
    • Material Stainless Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • IM-406
      • IM406
      View full details

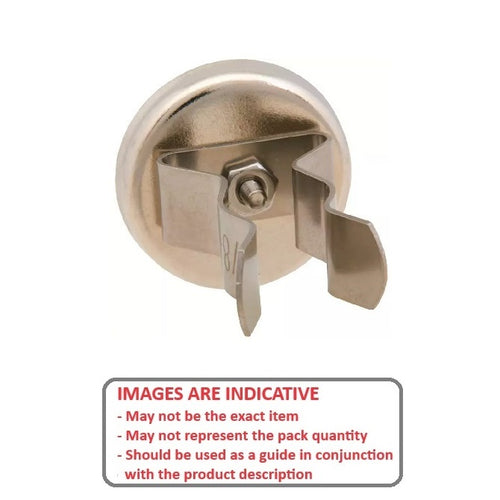

      MAG-CP-036-52-10-CLDiagramMAG-CP-036-52-10-CLImage
