MAG-CP-036-39-10-CL-D - Datasheet

MBA

Category Information

Magnets - Cup Assemblies with Clips

Cup Assemblies with Clips Magnets. This is the main category in this series

    Product Data

    • Diameter (A) : 35.81 mm
      (Equiv. 1.41 in.)
    • Overall Height 38.86 mm
      (Equiv. 1.53 in.)
    • Clip Style Option 3
    • Clip Material Zinc Plated
    • Max Holding Value 9.98 kg
    • Opening Range 19.05 - 28.70 mm
    • Material Steel Zinc Plated
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • IM414
      • IM-414
      View full details

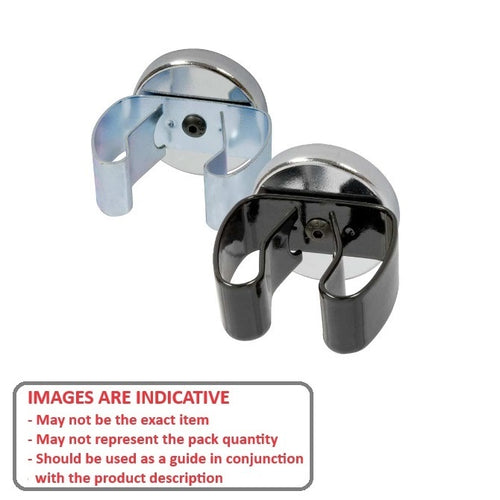

      MAG-CP-036-39-10-CL-DDiagramMAG-CP-036-39-10-CL-DImage
