MAG-CP-036-39-10-CL-A - Datasheet
MBA
Category Information

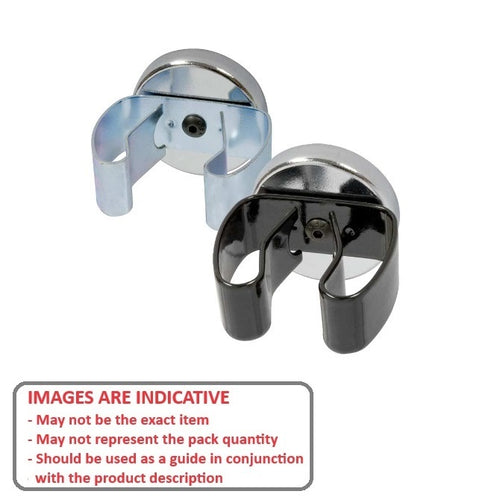

Magnets - Cup Assemblies with ClipsCup Assemblies with Clips Magnets. This is the main category in this series
- Permanent magnet (neodymium or ceramic) housed in a metal cup to concentrate and amplify its holding power, making it much stronger than the magnet alone.
- Assemblies are designed for holding, lifting, and mounting applications, with a steel cup protecting the brittle magnet and directing the magnetic force to the working surface.
Product Data
- Diameter (A) : 35.81 mm
- Overall Height 38.86 mm
- Clip Style Option 3
- Clip Material Zinc Plated
- Max Holding Value 9.98 kg
- Opening Range 25.40 - 38.10 mm
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® IM-415
- IM415
