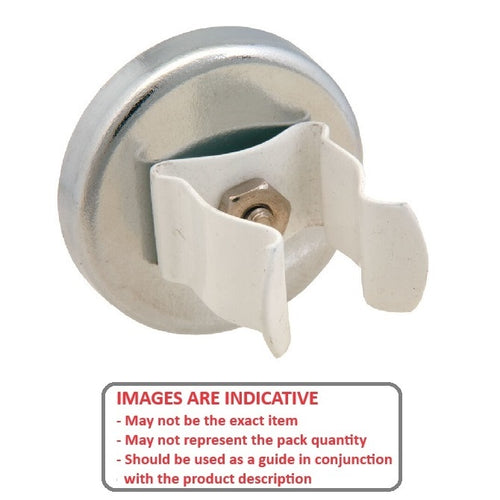

MAG-CP-036-33-10-CL - Datasheet
MBA
Category Information
Magnets - Cup Assemblies with ClipsCup Assemblies with Clips Magnets. This is the main category in this series
- Permanent magnet (neodymium or ceramic) housed in a metal cup to concentrate and amplify its holding power, making it much stronger than the magnet alone.
- Assemblies are designed for holding, lifting, and mounting applications, with a steel cup protecting the brittle magnet and directing the magnetic force to the working surface.
Product Data
- Diameter (A)
:
35.81
mm
(Equiv. 1.41 in.) - Overall Height
32.51
mm
(Equiv. 1.28 in.) - Clip Style Option 1
- Clip Material White Plastic
- Max Holding Value 9.98 kg
- Opening Range 14.22 - 22.35 mm
- Material White Plastic
Product Compliance and Data
Additional Resources
Cross References
- IM408
- IM-408
