CC-358-400-C - Datasheet
MBA
Category Information

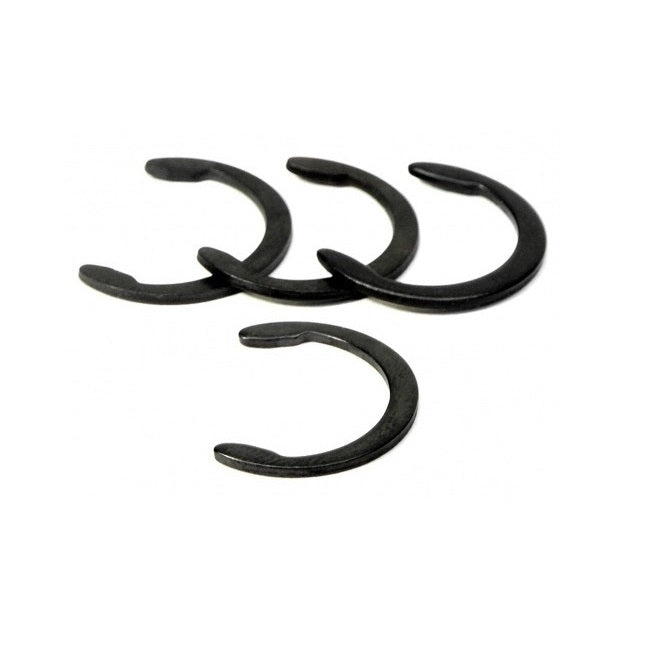

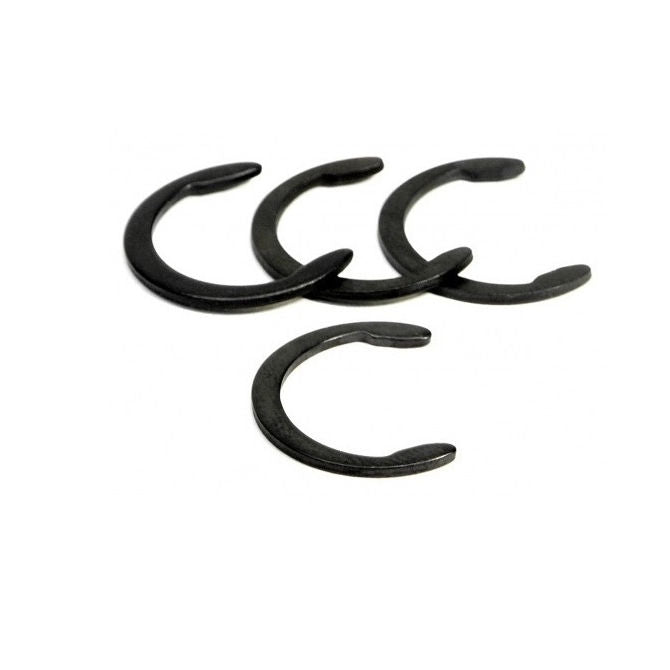

Retaining Rings - CrescentCrescent Retaining Rings. Variation of an E-Clip with an open face. Also known as a C-Clip.
- Narrow section height provides good clearance capabilities.
- Absence of teeth and deep set mean less thrust load ratings than e-clips.
- For best results install using the recommended applicator tool.
Product Data

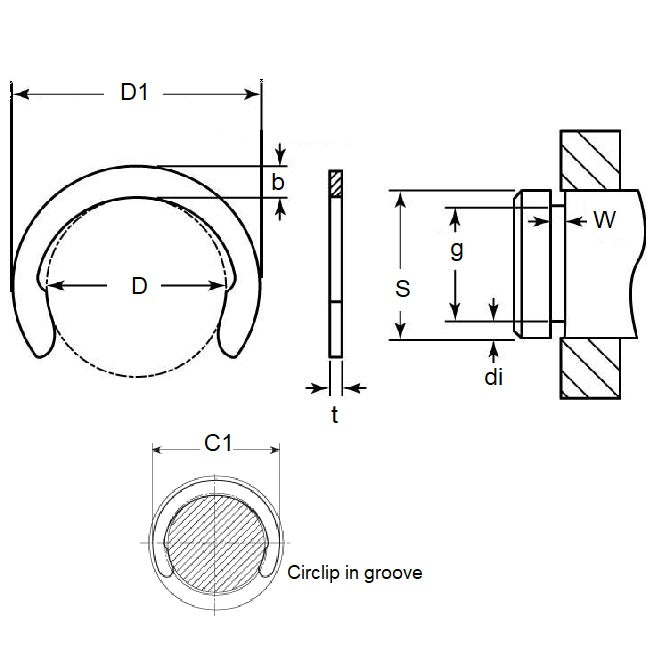

- Groove Diameter (G)
:
35.75 - 36.00
mm
(Equiv. 1.407 in.) - Shaft Diameter (S)
40.00
mm
(Equiv. 1.575 in.) - Thickness (t)
1.69
mm
(Equiv. 0.067 in.) - Clip OD in groove (C1) 45.800 mm
- Clip OD Loose (D1) 45.000 mm
- Groove Width (W) 1.85
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- NoCor DC-040
- DC040
