MAG-CP-036-07-08-SD - Datasheet

MBA

Category Information

Magnets - Cup Assemblies Stud

Cup Assemblies Stud Magnets. This is the main category in this series

    Product Data

    • Diameter (A) : 35.72 mm
      (Equiv. 1.406 in.)
    • Thickness (B) 7.14 mm
      (Equiv. 0.281 in.)
    • Thread Size 8-32 UNC
    • Thread Length 34.93 mm
    • Holding Value 9.98 kg
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • IM425
      • IM-425
      View full details

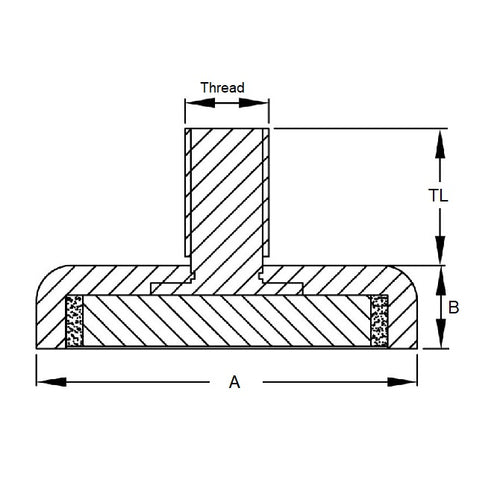

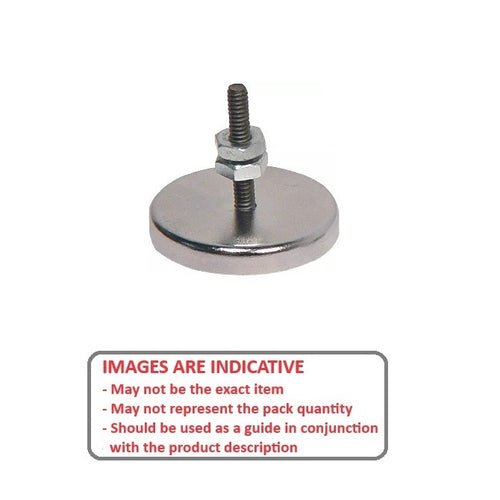

      MAG-CP-036-07-08-SDDiagramMAG-CP-036-07-08-SDImage
