Miniature Bearings Australia
1207 - Datasheet
MBA
Category Information

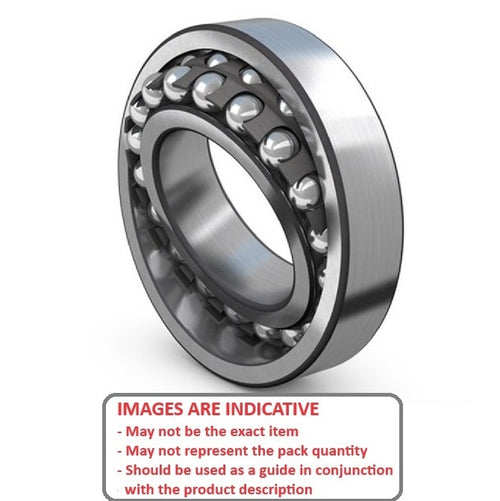

Bearings - Double Row Ball - Self Aligning - Parallel Bore Chrome SteelParallel Bore Chrome Steel Self Aligning Double Row Ball Bearings. This is the main category in this series
- Double row ball bearings are generally wider than a single row bearing of equivalent ID and OD.
- The double row ball bearing accommodates much higher loads than a single row bearing.
- An expanded range may be available on special order. Please enquire.
Product Data

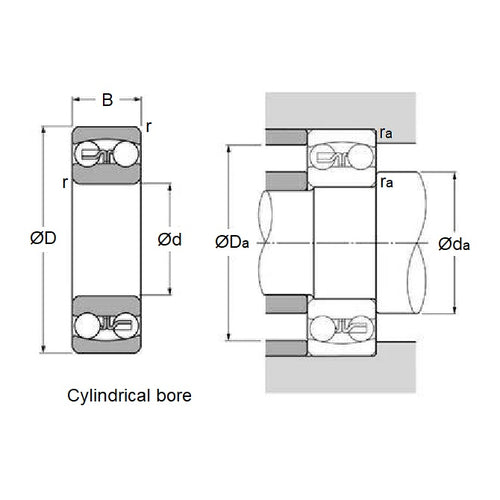

- ID (d)
:
35.000
mm
(Equiv. 1.378 in.) - OD (D)
72.000
mm
(Equiv. 2.835 in.) - Width (B)
17.000
mm
(Equiv. 0.669 in.) - Precision Grade Abec 1
- Closure Type Open
- Bearing Type Double Row Self Aligning
- Material Chrome Steel SAE 52100
