CP-159-HUB-G-PR-36 - Datasheet
MBA
Category Information

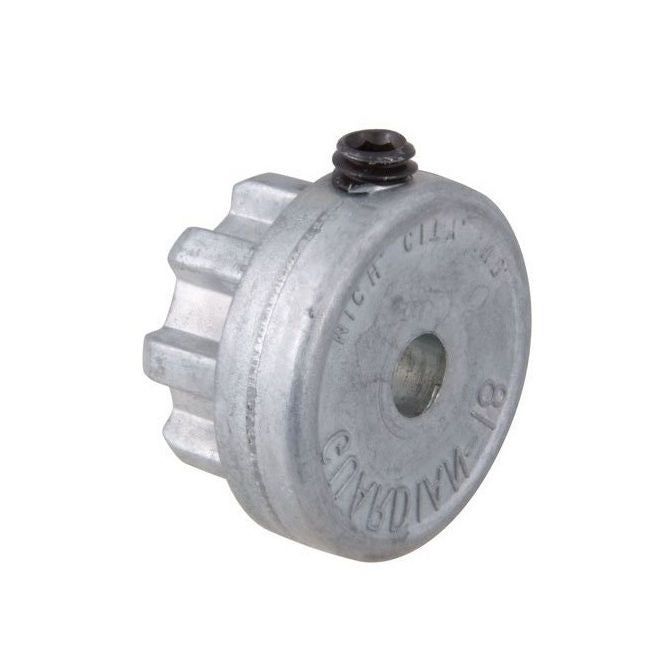

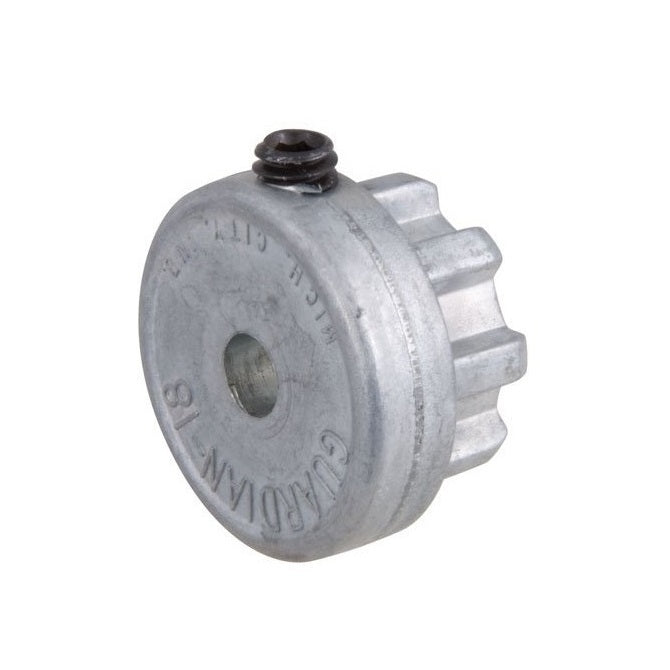

Couplings - Geargrip - Precision HubsPrecision Hubs Geargrip Couplings. Match with sleeves from sleeves category
- An expanded range may be available on special order. Please enquire.
Product Data
- Bore
:
15.875 (Keyed)
mm
(Equiv. 0.625 in.) - Sleeve OD For 35.56 OD Sleeve mm
- Overall Length Assembled When Complete 60.45 mm
- Description Single Hub Only
- Hub Protrusion Assembled 9.652 mm
- Number of Teeth 10 Nr.
- Hub Length 28.956 mm
- Hub Diameter (C) 36.830 mm
- Keyway Size 4.74 x 2.36 mm
Product Compliance and Data
Additional Resources
Cross References
- GU-2404
- GU2404
