COL-03500-050-50-AL - Datasheet
MBA
Category Information

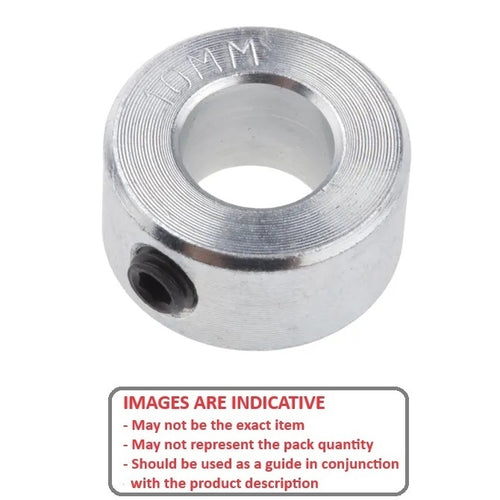

Collars - Shaft - Standard - AluminiumAluminium Standard Shaft Collars. Standard one piece aluminium shaft collar with set screw
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
35.000
mm
+ 0.10 / - 0.00
(Equiv. 1.378 in.) - Outside Diameter (D)
50.00
mm
+ 0.00 / - 0.10
(Equiv. 1.969 in.) - Overall Width (S)
15.0
mm
+ 0.00 / - 0.12
(Equiv. 0.591 in.) - Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Misumi SC3515A
