Miniature Bearings Australia
BF0350-0390-0200-AOI - Datasheet
MBA
Category Information

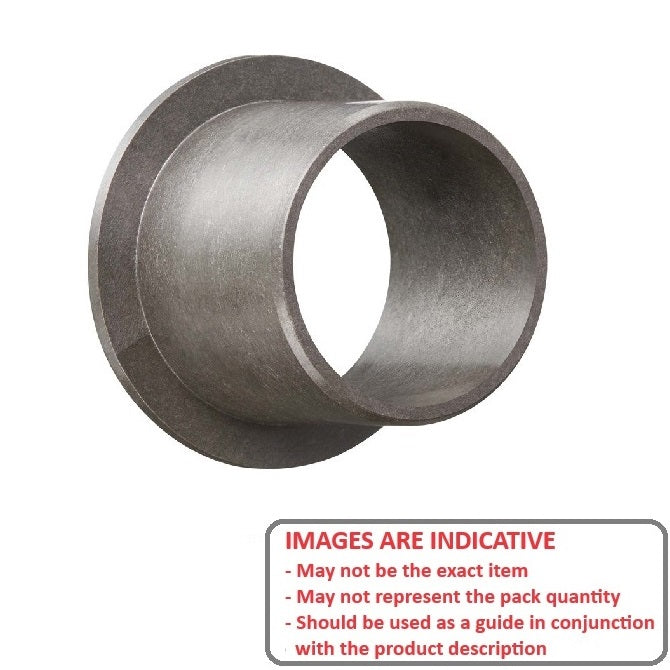

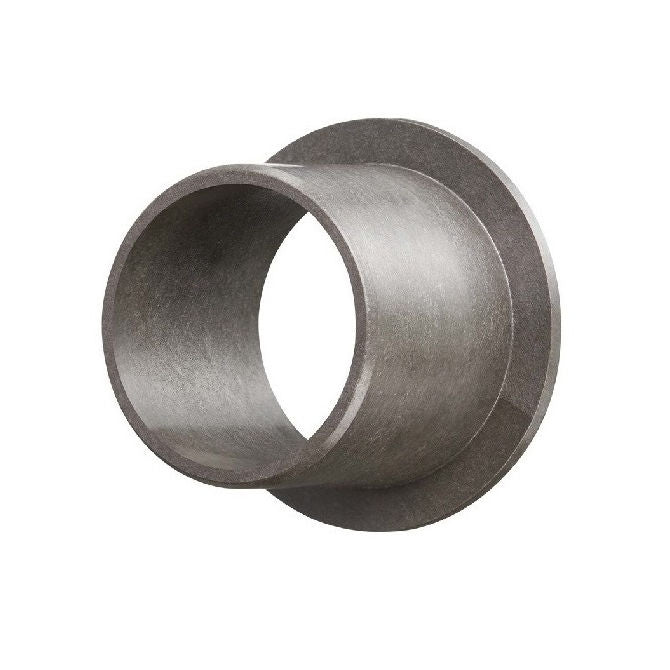

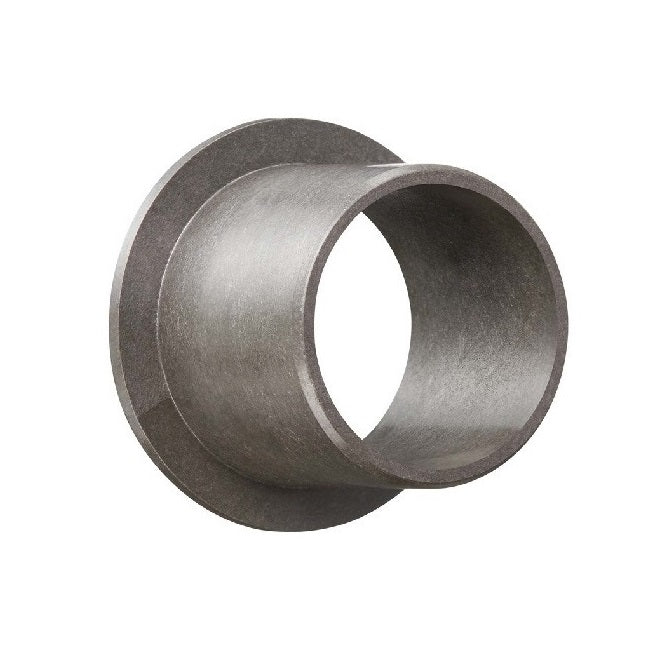

Bushes - Flanged - Plastic - Acetal - Oil ImpregnatedOil Impregnated Acetal Plastic Flanged Bushes. Oil impregnated acetal with self-lubricating characteristics.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Inside Diameter (d) : 35.000 mm
- Nominal Outside Diameter (D) 39.000 mm
- Length (s) 20.000 mm
- Flange OD (D1) 49.00 mm
- Flange Thickness (s1) 2.00 mm
- Material Acetal Oil Filled
Product Compliance and Data
Additional Resources
- DU Bush Material Information
- General Bushes Catalogue
- Sintered Bronze Products Catalogue
- Solid Bronze Bushes catalogue
Cross References
- DAIDO DBS3520-49F
- DBS352049F
