TR-350-369-110-S3 - Datasheet
MBA
Category Information
Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Product Data

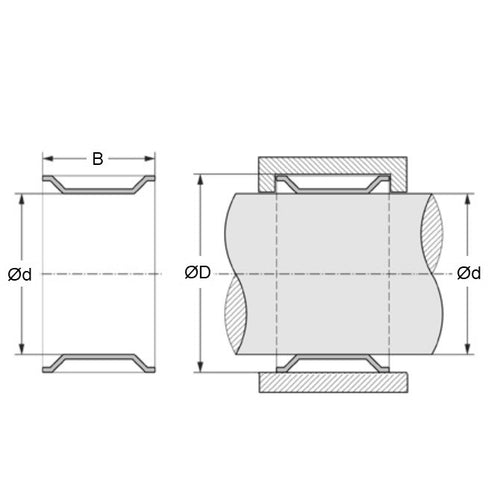

- Inner Part OD (d)
:
35.000 to 34.989
mm
(Equiv. 1.378 in.) - Housing ID (D)
36.88 to 36.98
mm
(Equiv. 1.452 in.) - Ring Width (B)
11.00
mm
(Equiv. 0.433 in.) - Style For bearing OD
- Max. Radial Load 160 N
- To Suit OD of Bearing 35mm (6003, 6202, 6300)
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 2896K15
- TR3503691103
- TR3503571103
- S77RY1ML350X11
