CMBC035-41-M08 - Datasheet

MBA

Category Information

Mounts - Buffer - Male - Conical

Conical Male Buffer Mounts. Rubber hardness 60 Duro Standard unless otherwise noted. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 35.0 mm
    (Equiv. 1.378 in.)
  • Body Length (H) 41.0 mm
    (Equiv. 1.614 in.)
  • Thread Size M8x1.25
  • Shore Hardness 60
  • Thread Length (L1) 16.0 mm
  • Configuration Male to Blank Conical
  • Material Natural Rubber
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • VM1331M
  • VM-133-1M
View full details

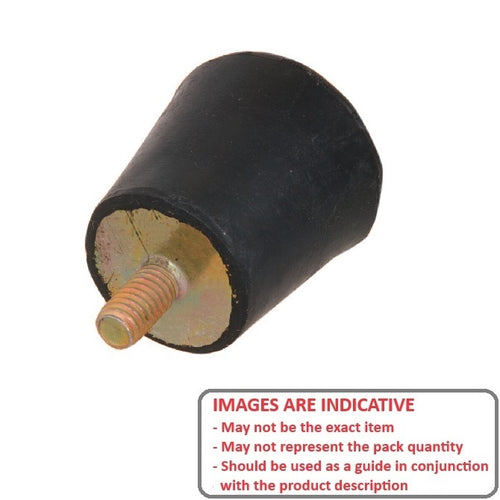

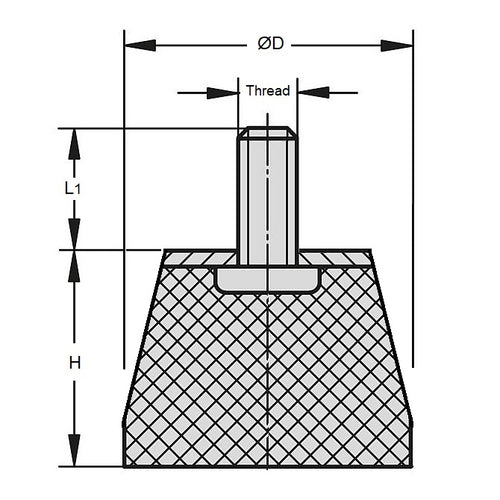

CMBC035-41-M08DiagramCMBC035-41-M08Image
