P-030H-034-060FF-AL-E-064 - Datasheet

MBA

Category Information

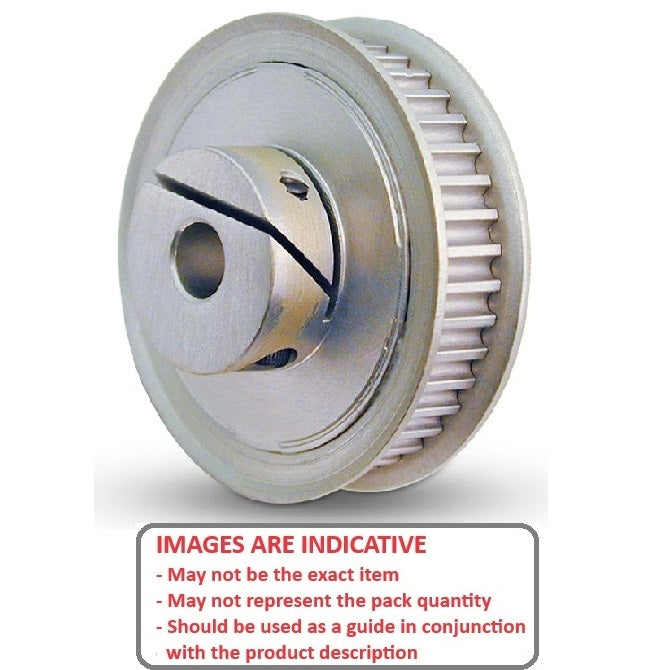

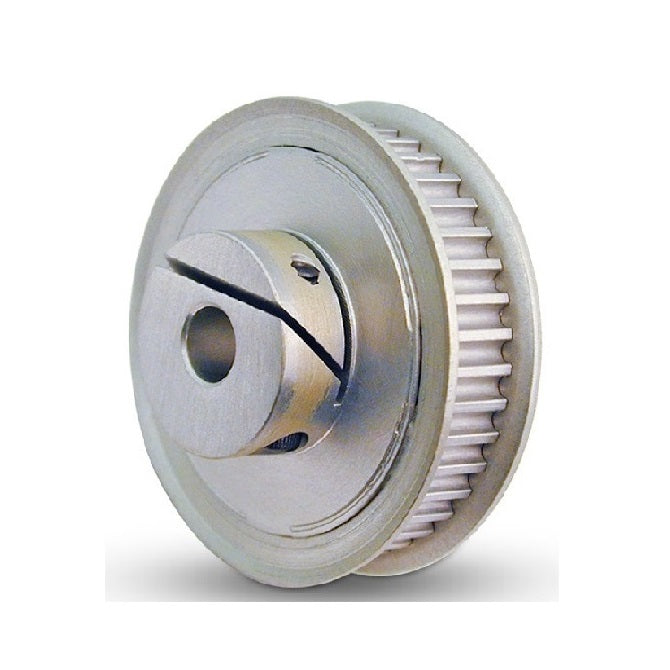

Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock

EZ-Lock 6mm Wide HTD 3.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit HTD 3.000mm Pitch Timing Belts. Suits belts 6.0 to 6.4mm wide.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.

Product Data

  • Number of Teeth : 34
  • Max Belt Width 6.00 mm
    (Equiv. 0.236 in.)
  • Bore (d) 6.350 mm
    (Equiv. 0.25 in.)
  • Bore Type Finished
  • Locking Type EZ-Lock Hub

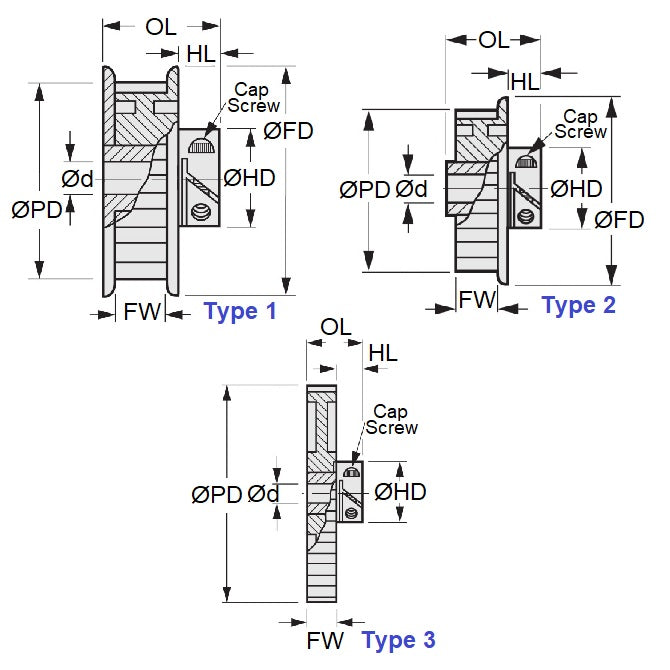

  • Type 2
  • Pitch Dia. (PD) 32.45 mm
  • Flange Diameter (FD) 35.6 mm
  • Overall Length 18.3 mm
  • Hub Diameter (HD) 19.5
  • Material Aluminium
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • A6D23-034DF0608
  • A6D23034DF0608
