P-030G-034-175A - Datasheet
MBA
Category Information

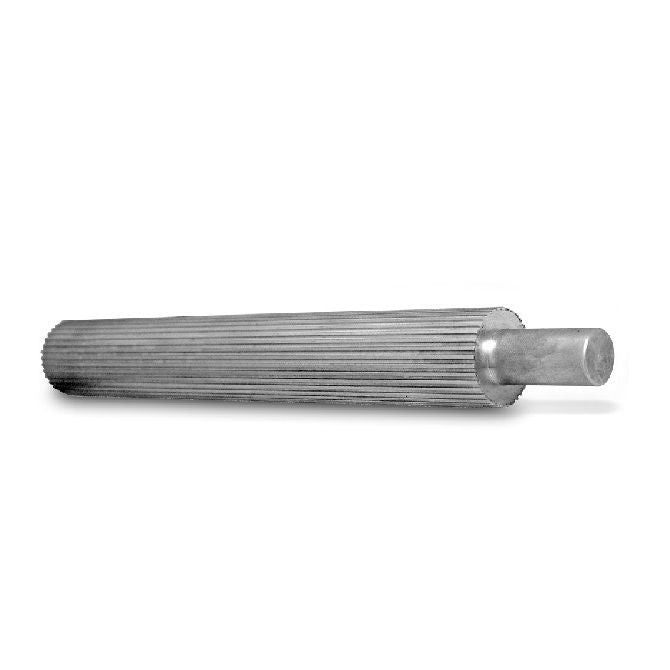

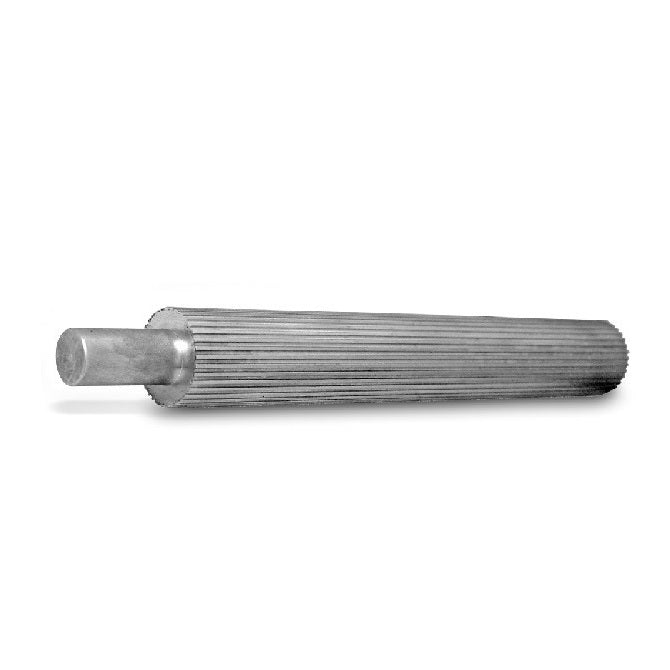

Pulleys - Metric Timing Stock - 3.000mm Pitch - GT AluminiumGT Aluminium 3.000mm Pitch Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
- Use with GT2 or GT3 type belts.
Product Data
- Number of Teeth : 34
- Min. Usable Length (L)
175.0
mm
(Equiv. 6.89 in.) - Pitch Diameter (PD)
32.50
mm
(Equiv. 1.28 in.) - Outside Diameter (OD) 31.71 mm
- Shank Diameter (D1) 12.70 mm
- Shank Length (Sl) 19.0 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 34-3P-PS7A
- A6A52M034GT18
- 343PPS7A
