MSF-080M-S3RP - Datasheet
MBA
Category Information

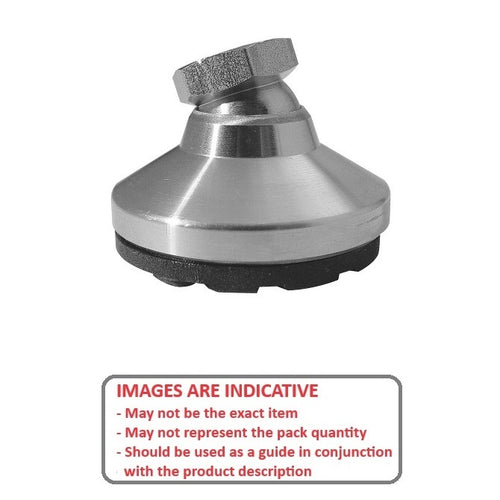

Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber PaddedRubber Padded 303 Stainless Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
- 303 Stainless Steel.
Product Data
- Thread Size (A) : M8 (8x1.25mm)
- Base Diameter (D)
25.0
mm
(Equiv. 0.984 in.) - Foot Height (C)
21.0
mm
(Equiv. 0.827 in.) - Min. Thread Depth 8.0 mm
- Base Height (E) 7.00 mm
- Load Rating 340 Kg
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 12.00 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- MSF0150M0836
- MLPSS240
- MLPSS-240
