MSM-080M-032-S3RP - Datasheet
MBA
Category Information

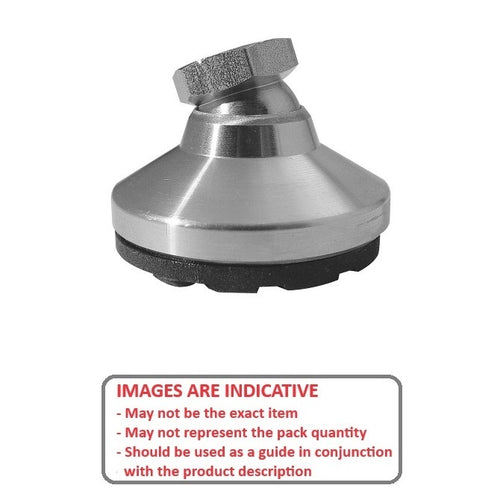

Mounts - Levelling Studded - Swivel - 303 Stainless - Rubber PaddedRubber Padded 303 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M8 (8x1.25mm)
- Base Diameter (D)
25.0
mm
(Equiv. 0.984 in.) - Foot Height (C)
21.0
mm
(Equiv. 0.827 in.) - Thread Length (F) 32.0 mm
- Base Height (E) 7.00 mm
- Overall Height 53.0 mm
- Load Rating 340 Kg
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 12.000 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- MSM0340M08S3R
- MLPSS90
- MLPSS-90
