MLM-127A-051-CGC - Datasheet
MBA
Category Information

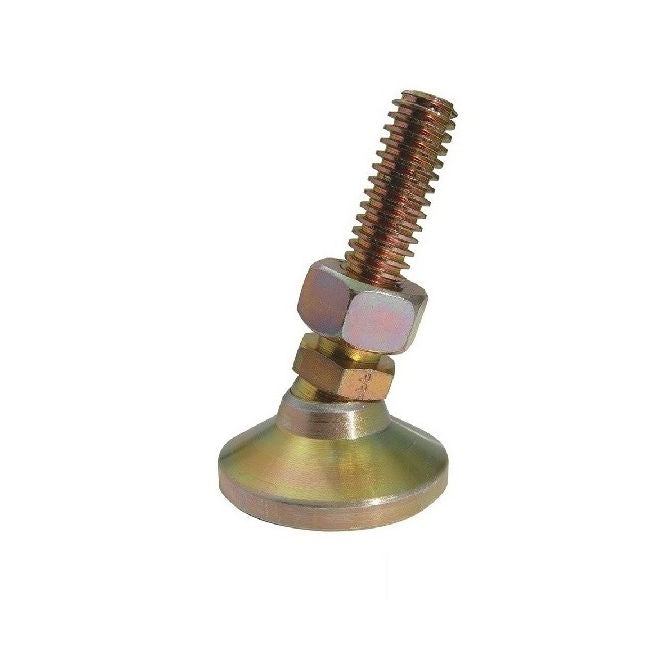

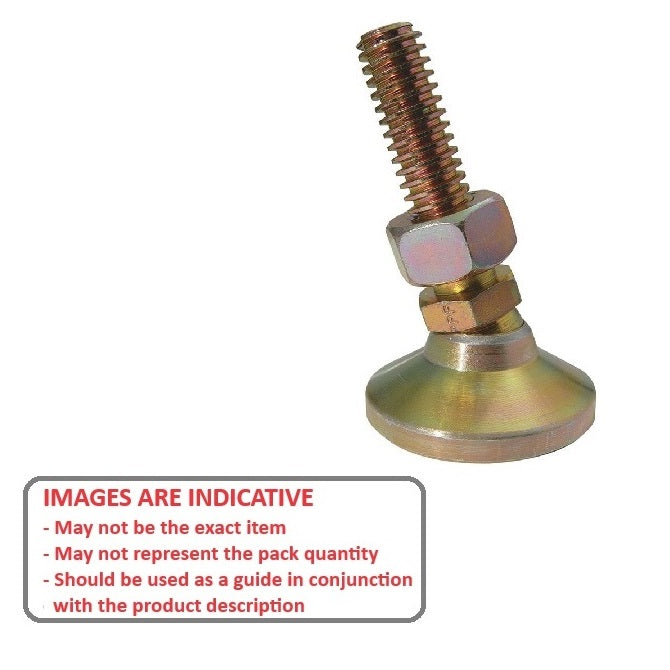

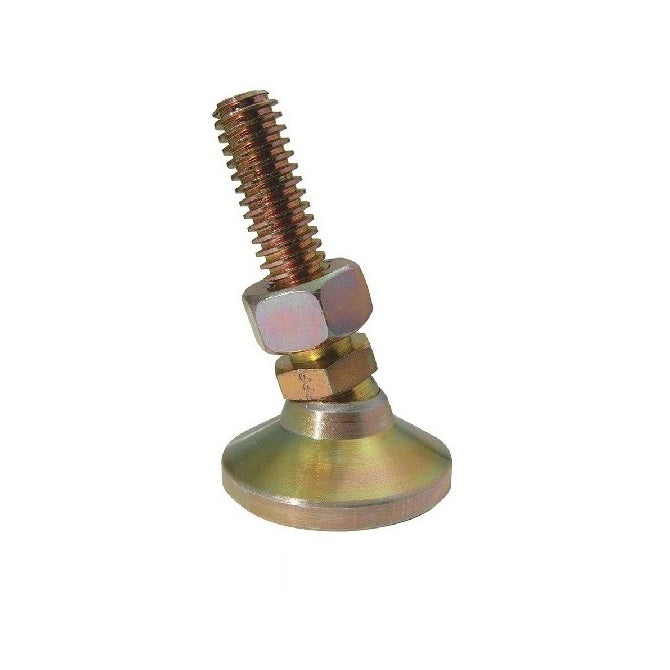

Mounts - Levelling Studded - Acme Thread - Gold ChromateGold Chromate Acme Thread Levelling Studded Mounts. Levelling adjusters.
- An expanded range may be available on special order. Please enquire.
Product Data

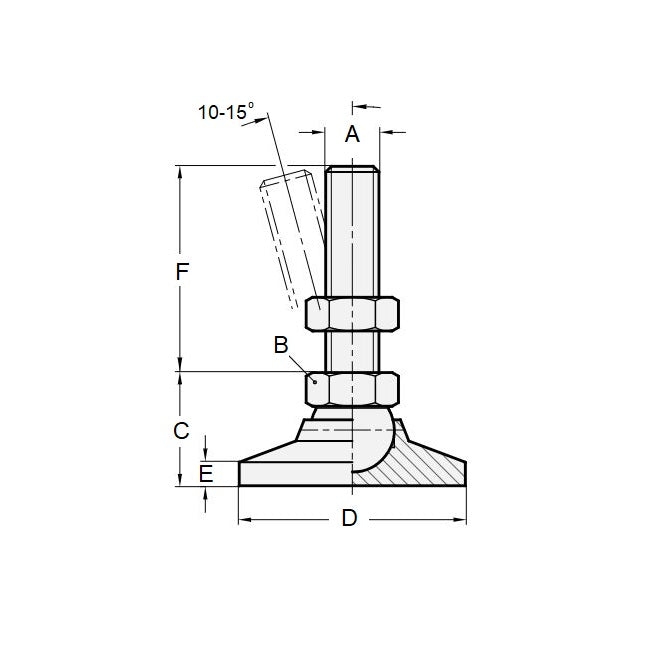

- Thread Size (A) : 1/2-10 (12.7 mm)
- Base Diameter (D)
47.6
mm
(Equiv. 1.874 in.) - Foot Height (C)
28.6
mm
(Equiv. 1.126 in.) - Thread Length (F) 50.8 mm
- Base Height (E) 28.6 mm
- Overall Height 79.4 mm
- Load Rating 3400 Kg
- Finish Gold Chromate
- Hex Flats (B) 19.05 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM0051127AG
- MLM3400127BG
- MLM3400051127AG
- ACM-35
- ACM35
