B-030H-0034-0150-NFB - Datasheet
MBA
Category Information

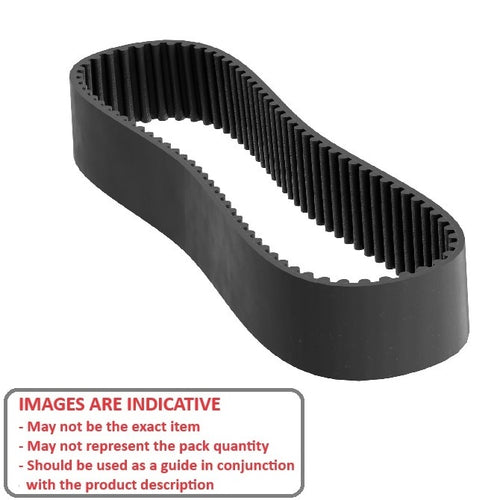

Belts - Timing 3.000mm Pitch - HTD - 15mm Wide - Single SidedSingle Sided 15mm Wide HTD Timing 3.000mm Pitch Belts. HTD Series Metric Timing Belts.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

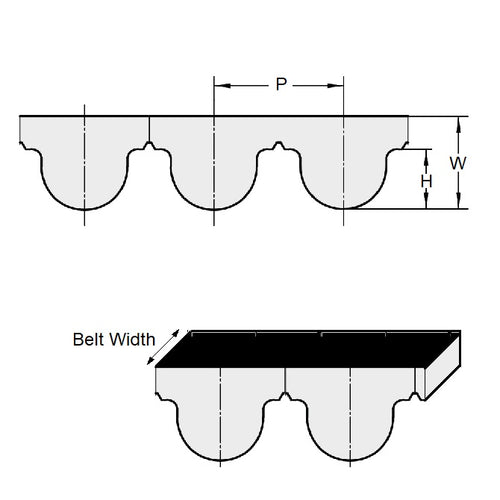

- Tooth Height (H) - 1.17mm
- Belt Height (W) - 2.41mm
- Tooth Length (T) - 1.78mm
- Pitch (P) - 3mm
Product Data
- Number of Teeth : 34
- Length
102
mm
(Equiv. 4.016 in.) - Width
15.0
mm
(Equiv. 0.591 in.) - Reinforcement Fibreglass
- Appearance Black
- Breaking Strength 2370 N
- Material Nylon Covered Neoprene with Fibreglass Cords
Product Compliance and Data
Additional Resources
Cross References
- Gates 102-3M-15
- 1023M15
