ECL-0312-0349-C - Datasheet
MBA
Category Information

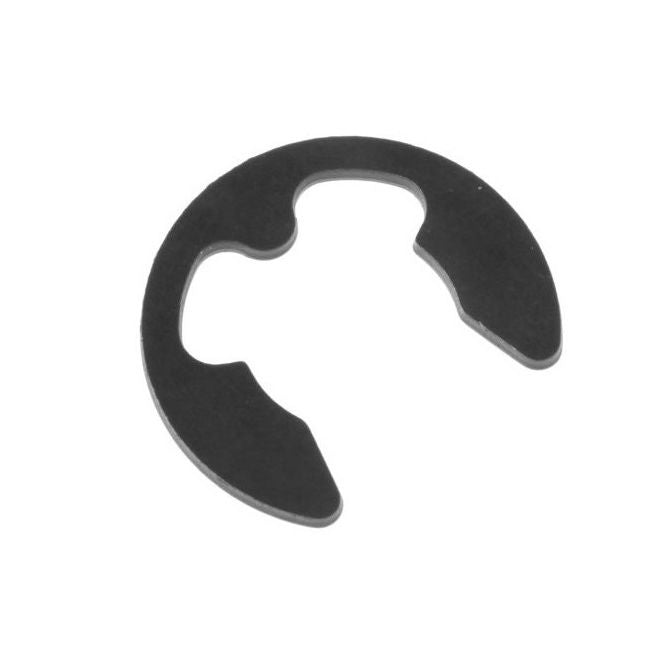

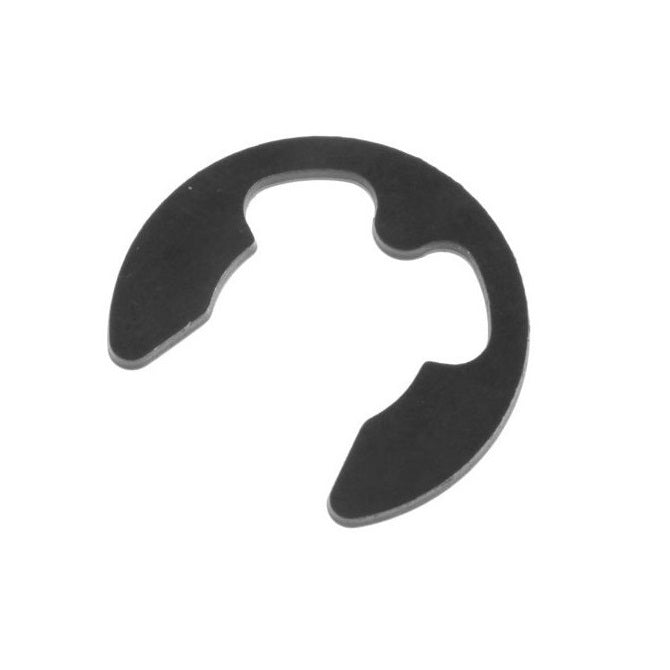

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
34.93
mm
+ 5.08 / - 0.00
(Equiv. 1.375 in.) - Groove Dia. (Dg)
31.24
mm
+ 0.127 / - 0.000
(Equiv. 1.23 in.) - Clip Thickness (T)
1.58
mm
+/ - 0.075
(Equiv. 0.062 in.) - Clip OD Loose (D1) 47.63 mm
- Groove Width (W) 1.73 mm
- Maximum Rec. Shaft Dia (S) 40.01
- Clip OD in groove (C1) 48.77 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 97431A400
- N1500X137APP
- N1500-X137APP
