CCF900RS - Datasheet

MBA

Category Information

Roller Followers - Crown

Crown Roller Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 34.925 mm
      (Equiv. 1.375 in.)
    • Overall Width (D) 20.625 mm
      (Equiv. 0.812 in.)
    • Bore (B) 9.525 mm
      (Equiv. 0.375 in.)
    • Width (C) 19.050 mm
    • Crown Radius 14.000 deg
    • E 25.400 mm
    • Dynamic Load Rating 1782.618 kg
    • Static Load Rating 3855.535 kg
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 3689K16
      • CCF-900
      • CCF900
      View full details

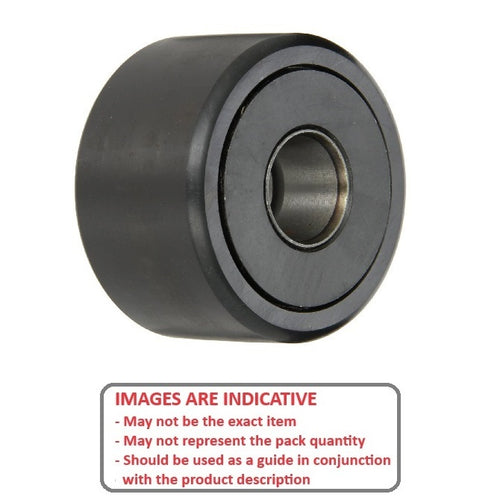

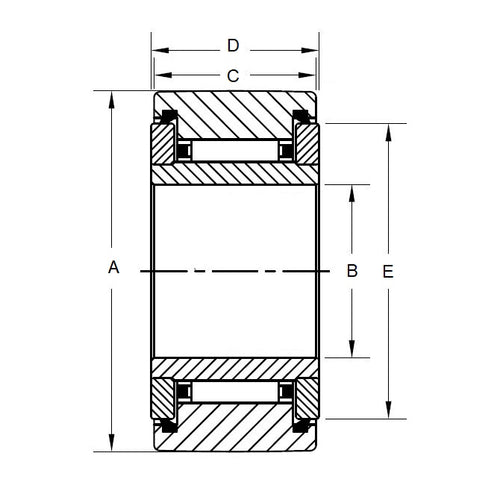

      CCF900RSDiagramCCF900RSImage
