Miniature Bearings Australia
CMBC035-41-079C - Datasheet
MBA
Category Information

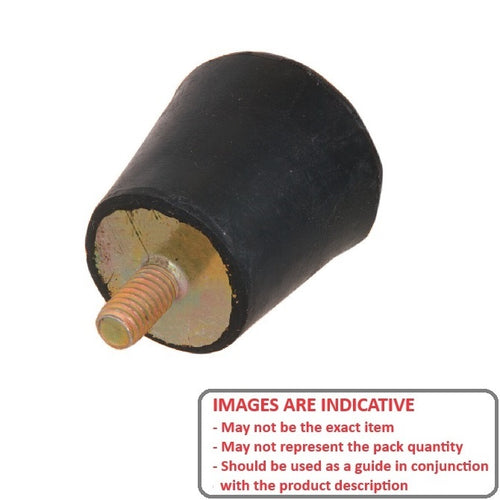

Mounts - Buffer - Male - ConicalConical Male Buffer Mounts. Rubber hardness 60 Duro Standard unless otherwise noted. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

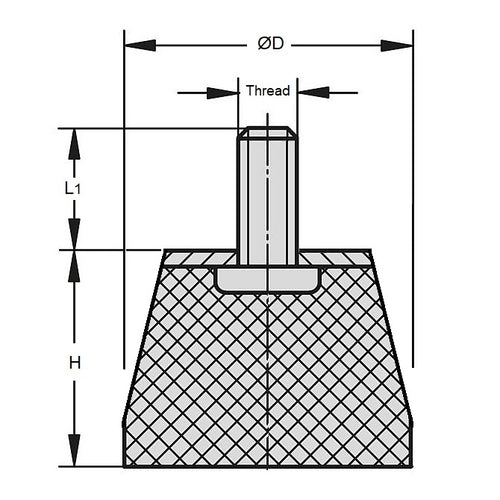

- Nom. Body Diameter (D)
:
34.9
mm
(Equiv. 1.374 in.) - Body Length (H)
41.3
mm
(Equiv. 1.626 in.) - Thread Size 5/16 UNC (18 TPI)
- Shore Hardness 60
- Thread Length (L1) 15.9 mm
- Configuration Male to Blank Conical
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- VM1331
- VM-133-1
