SKF21RS - Datasheet
MBA
Category Information

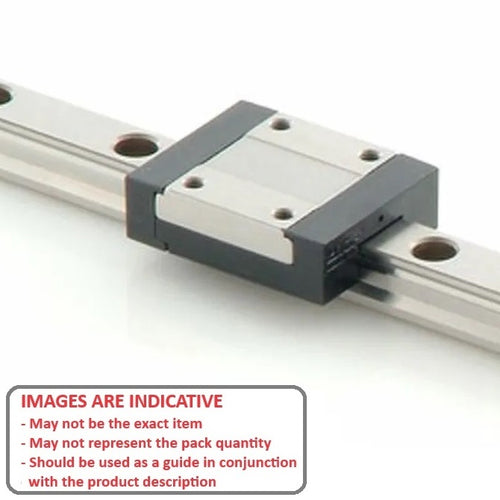

Linear - Rail Systems Miniature ProfileRail Systems Miniature Profile Linear. Ideal for precision applications where mounting space is limited
- Gothic arch grooves at raceway contacts enables slide to sustain loads & movement from any direction.
- Made from stainless steel or plastic for corrosion resistance. End caps have oil holes for easy relubrication.
Product Data

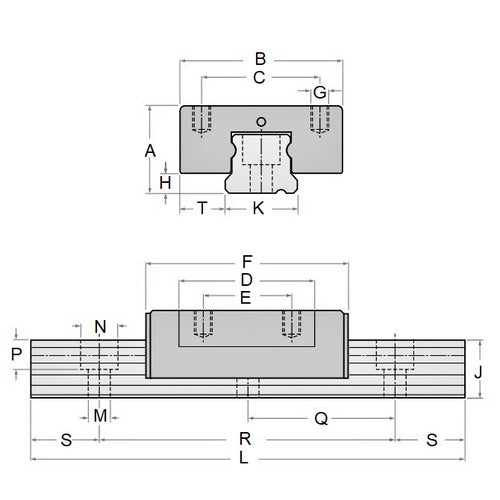

- Load Capacity : 336.57 Kg
- No. Of Carriages 1.00
- Rail Length (L) 150.00 mm
- Carriage Length (F/D) 45.50 / 32.50 mm
- Rail Dimensions (J/K) 8.80 / 24.00 mm
- Carriage Dimensions (A/B) 14.00 / 40.00 mm
- P 4.50 mm
- Rail Bolt Distance (R) 120.00 mm
- Rail Bolt Distance (Q) 45.00 mm
- Carriage Bolt Distance (C) 40.00 mm
- Carriage Bolt Distance (E) 15.00 mm
- More Information For more information please contact us
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® SKF-21
- SKF21
