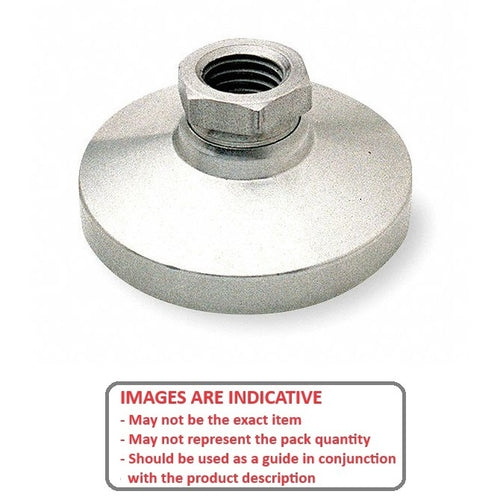

MLF-191C-S6 - Datasheet
MBA
Category Information
Mounts - Levelling Socket - Standard - 316 Stainless316 Stainless Standard Levelling Socket Mounts. Levelling adjusters. For levelling machine tools, electronic racks, benches etc on uneven surfaces.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 3/4-10 UNC (19.05mm)
- Base Diameter (D)
76.2
mm
(Equiv. 3 in.) - Foot Height (C)
38.1
mm
(Equiv. 1.5 in.) - Min. Thread Depth 15.8 mm
- Base Height (E) 12.70 mm
- Load Rating 3350 Kg
- Hex Flats (B) 26.99 mm
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- 6103K158
- MLF3350191CS6
- MLF3360191CS6
- LSS3
- LSS-3
