WRI-0320-LS - Datasheet
MBA
Category Information

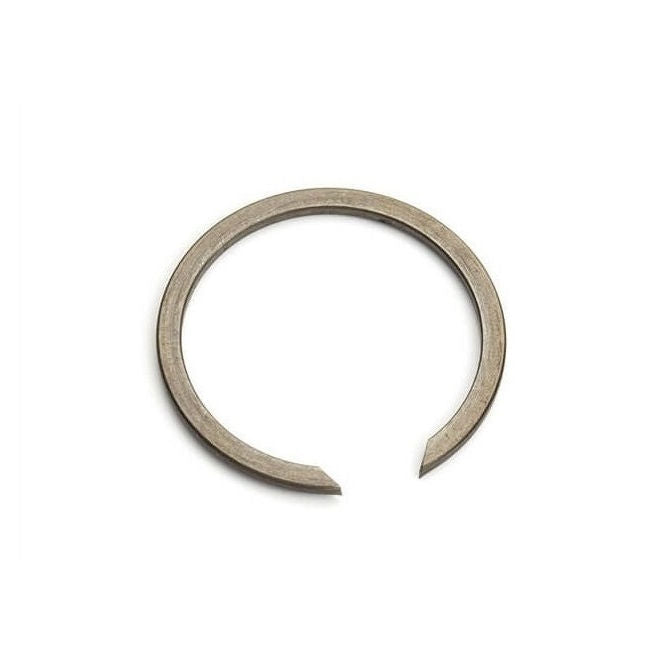

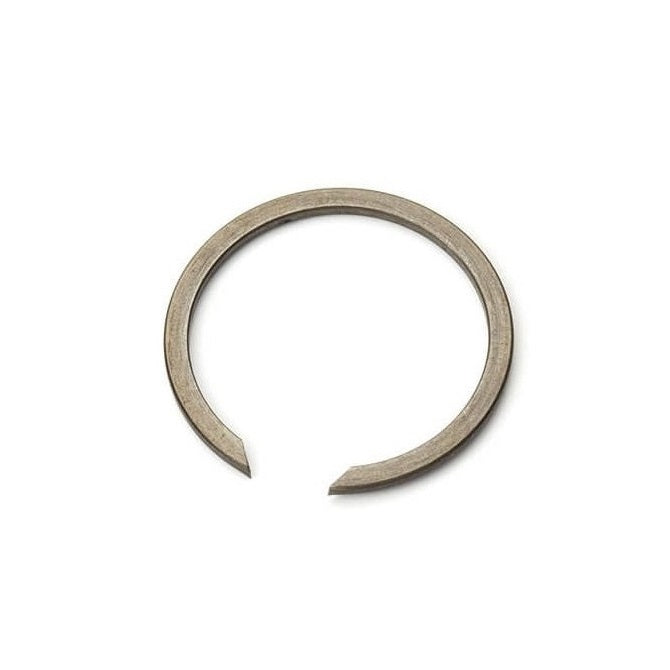

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Housing Bore (B)
:
32.00
mm
(Equiv. 1.26 in.) - Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.) - Groove Dia. (Dg)
33.00
mm
+ 0.16 / - 0.00
(Equiv. 1.299 in.) - Approx. Loose Circlip OD (Dr) 33.40 mm
- Section (Rd) 2.30 mm + 0 / - 0.10
- Groove Width (W) 1.60 mm
- Approx. Loose Clip ID 28.8
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSB-032
- Seeger SB32
- Seeger SB32A501-S
- DSB032
- WRI0320SQ
- SB32A501S
- M23000320APP
- M2300-0320APP
