MSF-200M-CCC - Datasheet
MBA
Category Information

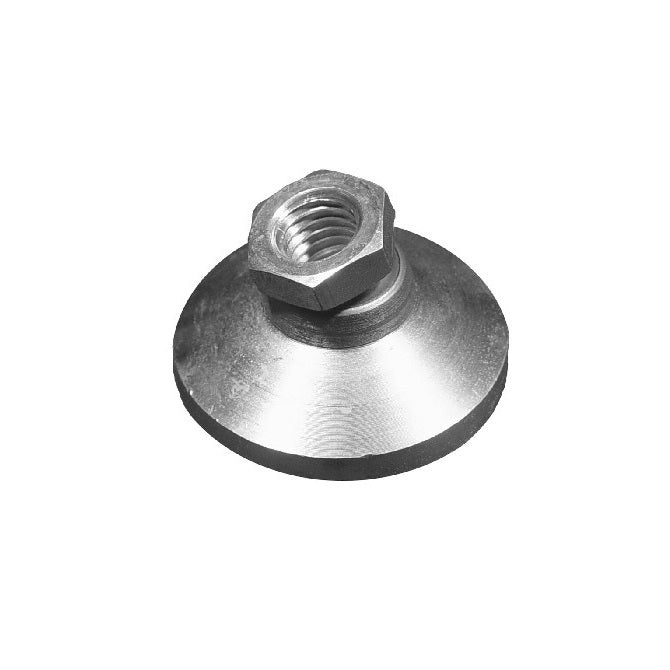

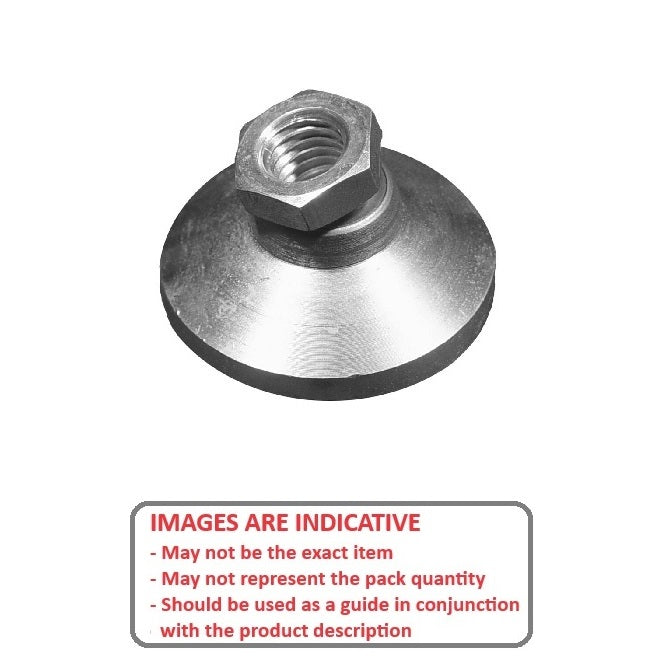

Mounts - Levelling Socket - Swivel - Clear Chromate - StandardStandard Clear Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D)
76.0
mm
(Equiv. 2.992 in.) - Foot Height (C)
38.0
mm
(Equiv. 1.496 in.) - Min. Thread Depth 15.7 mm
- Base Height (E) 13.00 mm
- Load Rating 3270 Kg
- Steel
- Finish Clear Chromate
- Hex Flats (B) 30.00
- Material Clear Chromate
Product Compliance and Data
Additional Resources
Cross References
- 6120K36
- MSF3270M20CC
- MLP165
- MLP-165
