MSM-200M-051-CCC - Datasheet
MBA
Category Information

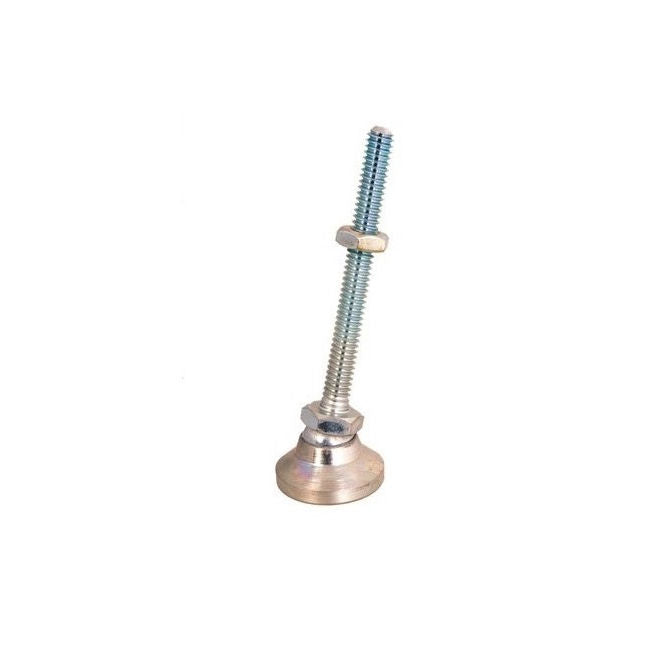

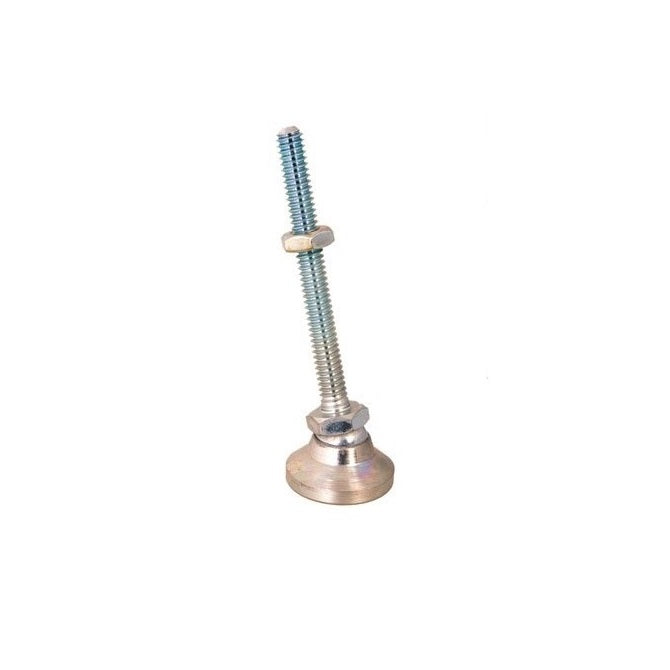

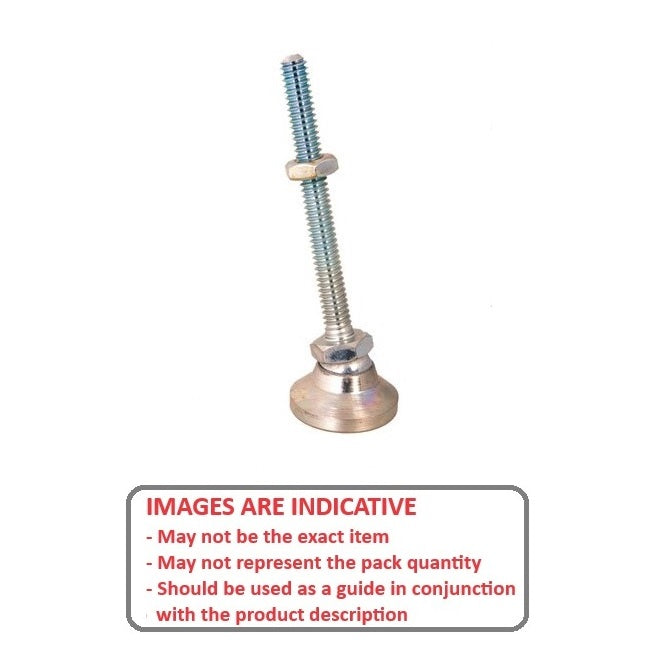

Mounts - Levelling Studded - Swivel - Clear Chromate - StandardStandard Clear Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D)
76.0
mm
(Equiv. 2.992 in.) - Foot Height (C)
38.0
mm
(Equiv. 1.496 in.) - Thread Length (F) 51.0 mm
- Base Height (E) 13.00 mm
- Overall Height 89.0 mm
- Load Rating 3270 Kg
- Finish Clear Chromate
- Hex Flats (B) 30.000 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6301K76
- MSM3270M20CC
- MLP-245
- MLP245
