MSF-191C-CGC - Datasheet

MBA

Category Information

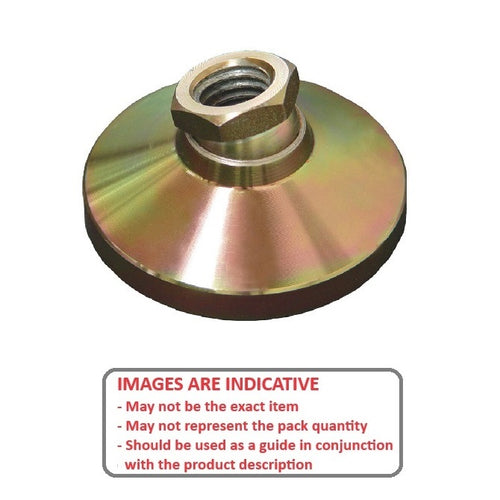

Mounts - Levelling Socket - Swivel - Standard - Gold Chromate

Gold Chromate Standard Swivel Levelling Socket Mounts. Levelling adjusters. 15^o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

An expanded range may be available on special order. Please enquire.

Product Data

Thread Size (A) : 3/4-10 UNC (19.05mm)
Base Diameter (D) 76.2 mm
Foot Height (C) 38.1 mm
Min. Thread Depth 15.8 mm
Base Height (E) 12.70 mm
Load Rating 3270 Kg
Steel
Finish Gold Chromate
Hex Flats (B) 26.99 mm
Material Gold Chromate

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Measuring Small Parts
Metalworking Resource Guide

Cross References

Reid Tool® L-3
L3
MSF3270191CG
