MSF-191C-CCC - Datasheet
MBA
Category Information

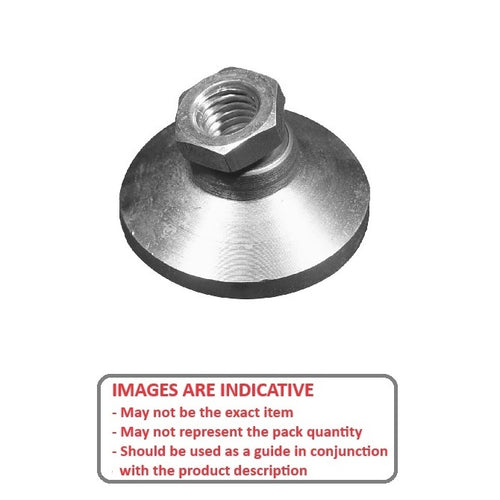

Mounts - Levelling Socket - Swivel - Clear Chromate - StandardStandard Clear Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 3/4-10 UNC (19.05mm)
- Base Diameter (D)
76.2
mm
(Equiv. 3 in.) - Foot Height (C)
38.1
mm
(Equiv. 1.5 in.) - Min. Thread Depth 15.8 mm
- Base Height (E) 12.70 mm
- Load Rating 3270 Kg
- Steel
- Finish Clear Chromate
- Hex Flats (B) 26.99
- Material Clear Chromate
Product Compliance and Data
Additional Resources
Cross References
- 6103K14
- MSF3270191CCC
- LS-13
- LS13
