B-40D-0324-0064-PPY - Datasheet
MBA
Category Information
Belts - Inch Timing - 2.073mm Pitch 40DP - 6.4mm Wide6.4mm Wide 2.073mm Pitch 40DP Inch Timing Belts. Standard Series Timing Belts 2.072mm or 0.0816 inch pitch. Also known as LT.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
- Tooth Length (T) - 0.6mm
- Tooth Height (H) - 0.46mm
- Belt Height (W) - 1.2mm - Corner Radii ( r ) - 0.2mm
- Pitch (P) - 2.073mm (0.0816 inch)
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 324
- Length
671.652
mm
(Equiv. 26.443 in.) - Width
6.4
mm
(Equiv. 0.252 in.) - Reinforcement Polyester

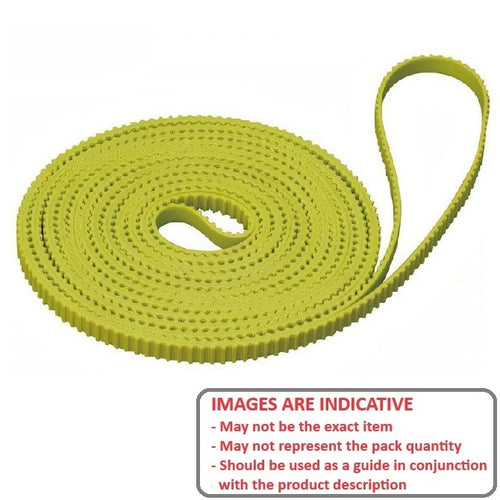

- Appearance Yellow
- Breaking Strength 711 N
- Min Temperature (C) -18 Deg C
- Max Temperature (C) 82 Deg C
- Tooth Angle (A) 60 °
- Material Polyurethane with Polyester Cords
Product Compliance and Data
Additional Resources
Cross References
- Gates B40D03240060PP
- A 6G 6-3240250
- B50D03240064PPY
- A6G6-324025
- A6G6M324060
- A6G6324025
