TR-320-339-100-S3 - Datasheet
MBA
Category Information

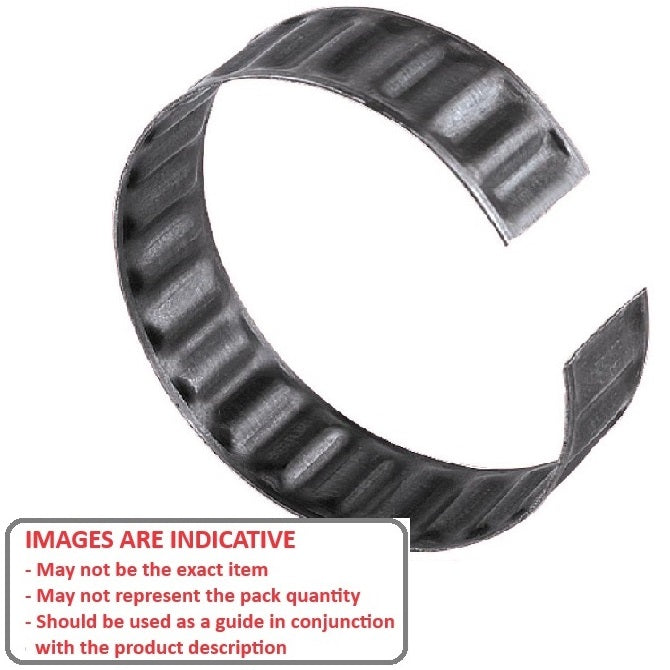

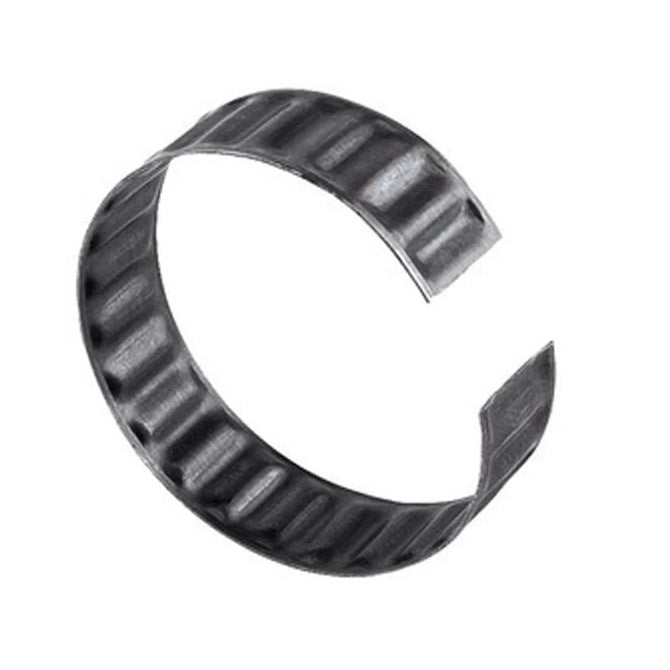

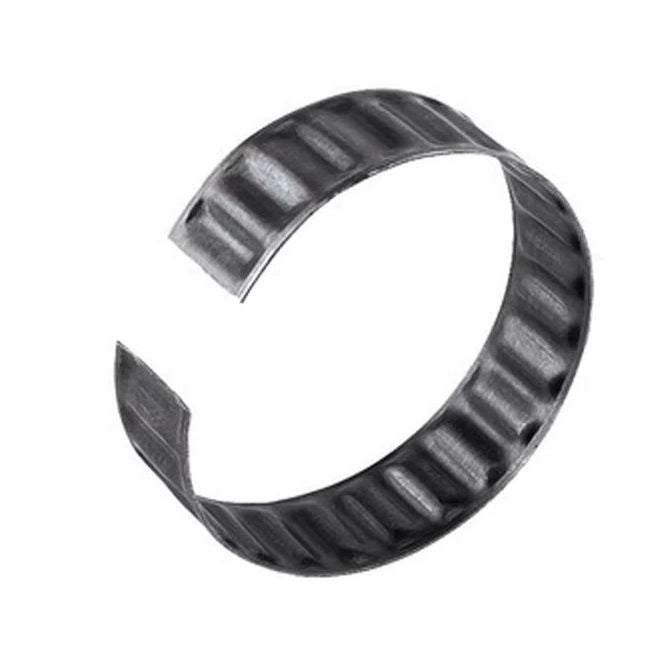

Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Product Data

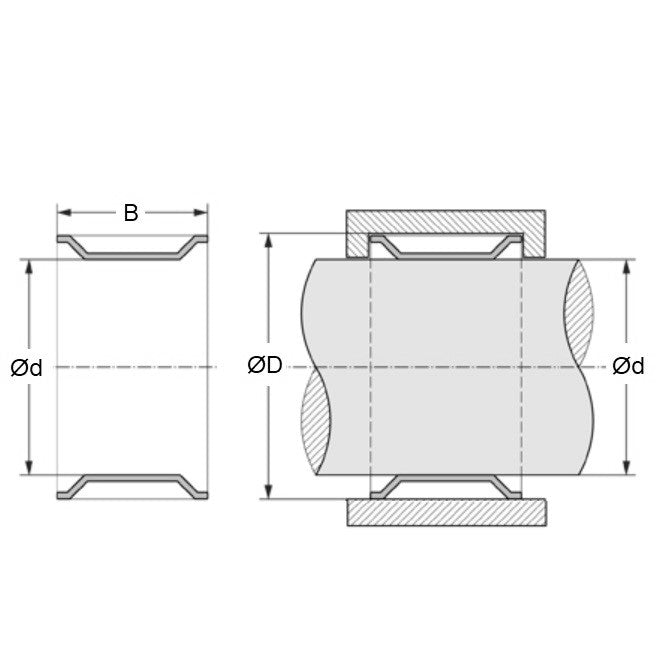

- Inner Part OD (d)
:
32.000 to 31.989
mm
(Equiv. 1.26 in.) - Housing ID (D)
33.88 to 33.98
mm
(Equiv. 1.334 in.) - Ring Width (B)
10.00
mm
(Equiv. 0.394 in.) - Style For bearing OD
- Max. Radial Load 135 N
- To Suit OD of Bearing 32mm (6002, 6201)
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
