BTU0318-045-TS-C - Datasheet
MBA
Category Information

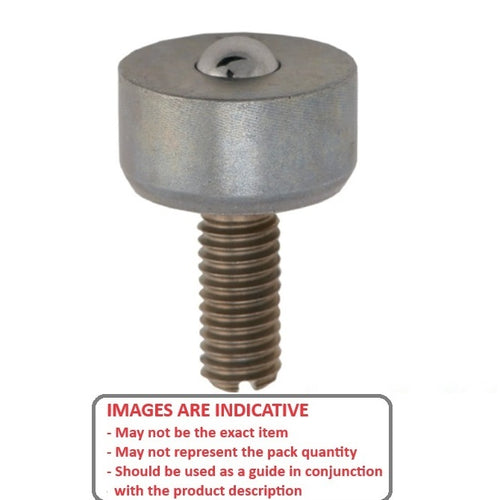

Ball Transfer Units - Screw Stem - Steel - PrecisionPrecision Steel Screw Stem Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Applications include measuring equipment and light weight coil handlers. Guides for small linear motion (eg. photocopier slides). Transfer of material in clean rooms.
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 318 kg

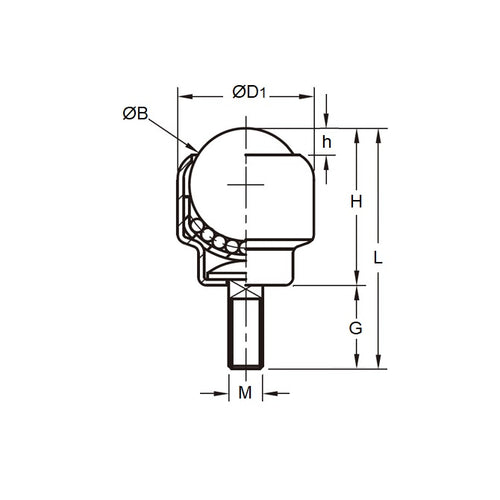

- Height from Base (B)
45.2
mm
(Equiv. 1.78 in.) - Body Diameter (D)
50.80
mm
(Equiv. 2 in.) - Overall Height (L) 77.0 mm
- Ball Diameter 25.4 mm
- Body Height (H) 45.2 mm
- Thread 1/2-20 UNF
- Stud Length (Sl) 25.4 mm
- 1 Type
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- SKF-7131
- SKF7131
