Miniature Bearings Australia
BTU0318-006-P-C-HD - Datasheet
MBA
Category Information

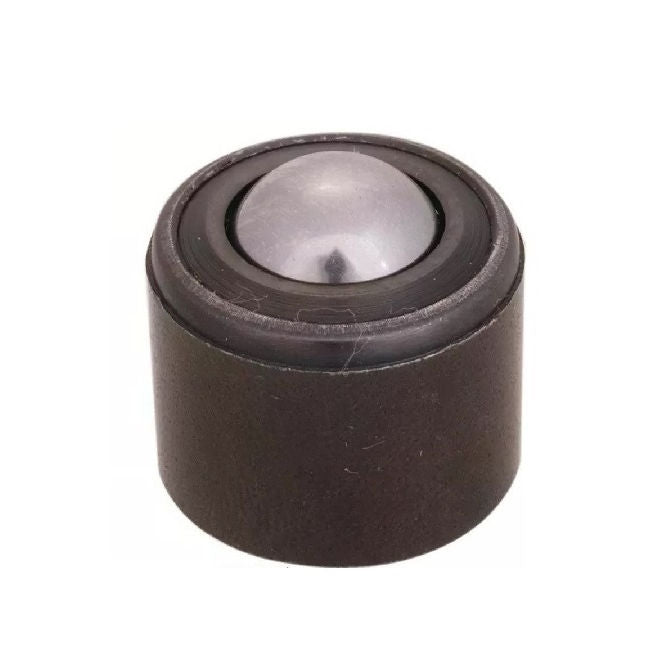

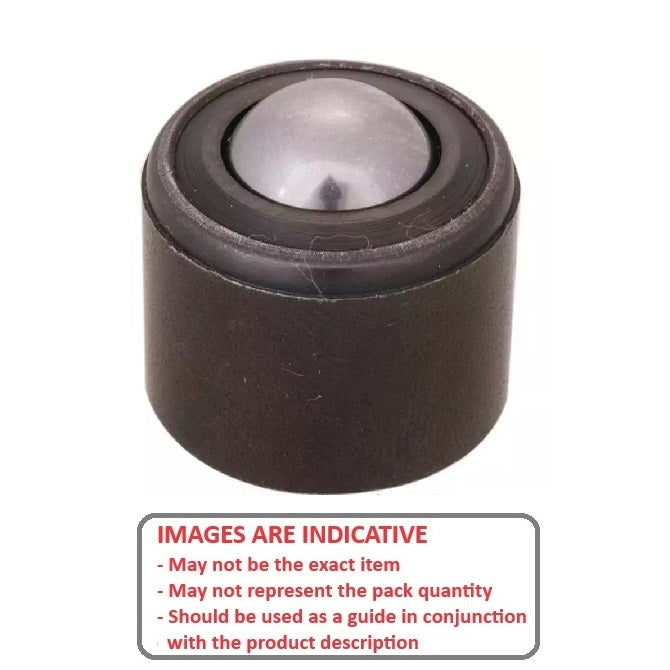

Ball Transfer Units - Dismantlable - Heavy Duty SteelHeavy Duty Steel Dismantlable Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 318 kg

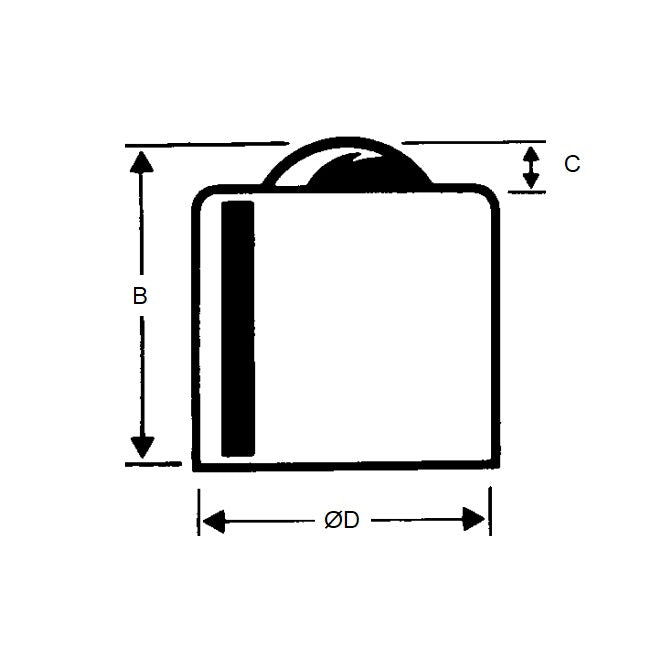

- Height from Base (B) 6.1 mm
- Body Diameter (D) 50.8 mm
- Overall Height (L) 44.7 mm
- Ball Diameter 25.4 mm
- Body Height 38.6 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® SKF-7121
- SKF7121
