BTU0318-006-B-C-HD - Datasheet
MBA
Category Information

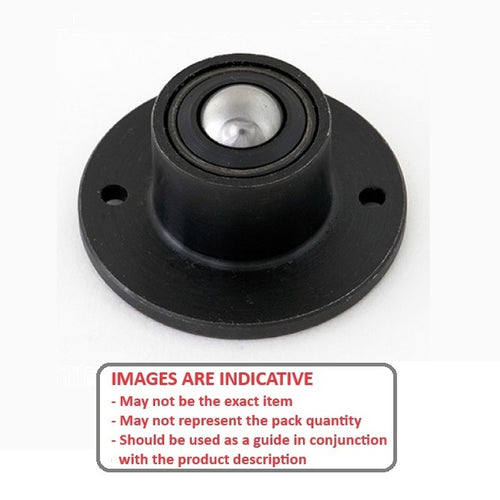

Ball Transfer Units - Base Mount - Heavy Duty SteelHeavy Duty Steel Base Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 318 kg

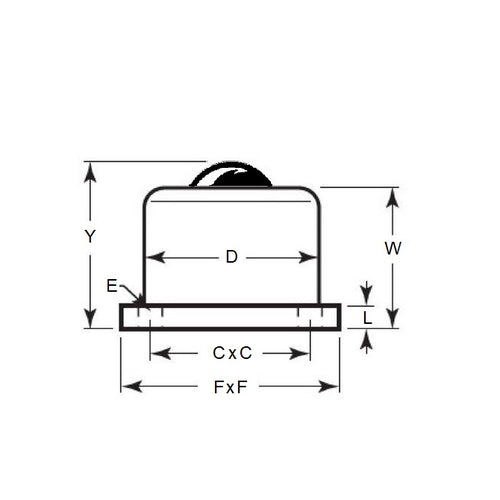

- Overall Height
45.5
mm
(Equiv. 1.791 in.) - Height from Base (B)
6.3
mm
(Equiv. 0.248 in.) - Body Diameter (D) 50.8 mm
- Ball Diameter 25.4 mm
- Body Height 39.1 mm
- Flange Diameter 76.2 mm
- Flange Thickness 6.4 mm
- Fixing Hole Size 7.1 mm
- Hole Centres 57.9 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- SKF-7123
- SKF7123
