MVI-0318-C2 - Datasheet
MBA
Category Information

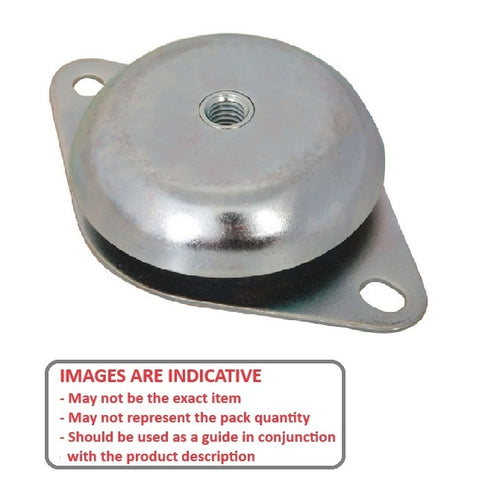

Mounts - Vibration Isolation - Cup Style 2Cup Style 2 Vibration Isolation Mounts. Industrial cupmounts provide excellent protection against severe impact shock, vibration and noise.
- High vibration dampening. Fail safe, rugged interlocking metal and neoprene construction.
- Metal cupmount is cold rolled steel. Low profile compact design. Metal top plate is domed shape to guard against oil contamination.
- High grade neoprene elastomer provides resistance to ozone and oils.
Product Data
- Non-Impact Load : 317 Kg
- Impact Load 204.1 Kg

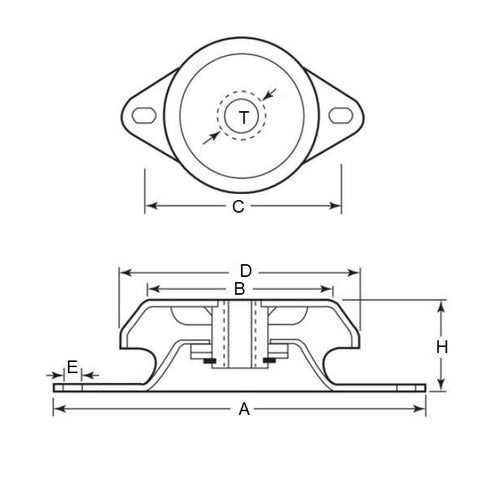

- Mount Diameter (D)
92.08
mm
(Equiv. 3.625 in.) - Height (H) 34.93 mm
- Thread Size 1/2-13 UNC (12.70)
- Plate Diameter (B) 69.85 mm
- Bolt Centres (C) 127.00 mm
- Flange Length (A) 152.40 mm
- Bolt Hole (E) 9.91 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- VP-42
- VP42
