MSF-060M-CGC - Datasheet
MBA
Category Information

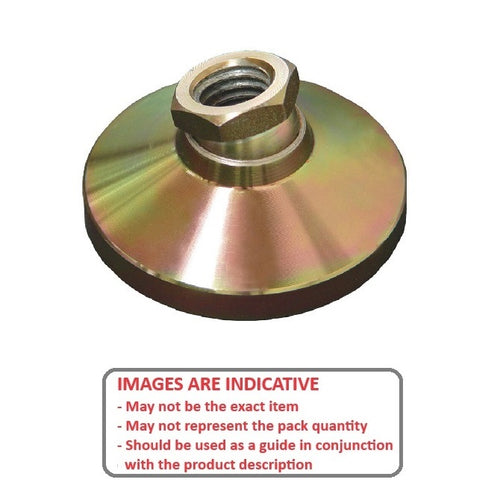

Mounts - Levelling Socket - Swivel - Standard - Gold ChromateGold Chromate Standard Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M6 (6x1mm)
- Base Diameter (D)
19.1
mm
(Equiv. 0.752 in.) - Foot Height (C)
13.5
mm
(Equiv. 0.531 in.) - Min. Thread Depth 5.8 mm
- Base Height (E) 2.80 mm
- Load Rating 315 Kg
- Steel
- Finish Gold Chromate
- Hex Flats (B) 10.00 mm
- Material Gold Chromate
Product Compliance and Data
Additional Resources
Cross References
- MLF0315M06G
- MLF0320M06G
- HVLM5
- HVLM-5
