MSF-060M-CNP - Datasheet
MBA
Category Information

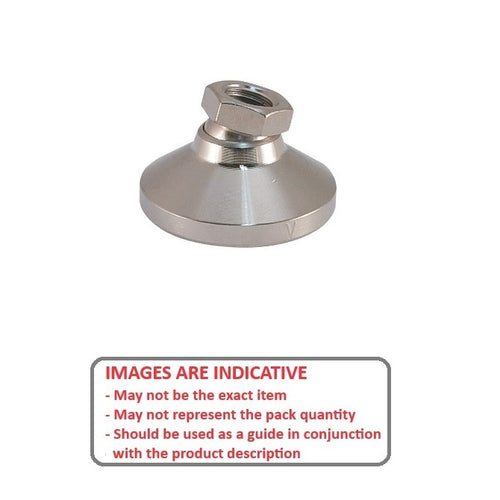

Mounts - Levelling Socket - Swivel - Nickel Standard - PlatedPlated Nickel Standard Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M6 (6x1mm)
- Base Diameter (D)
19.0
mm
(Equiv. 0.748 in.) - Foot Height (C)
13.0
mm
(Equiv. 0.512 in.) - Min. Thread Depth 4.0 mm
- Base Height (E) 3.00 mm
- Load Rating 315 Kg
- Finish Nickel Plated
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSF0315M06NP
- MLP355
- MLP-355
