MSM-060M-025-S3 - Datasheet
MBA
Category Information

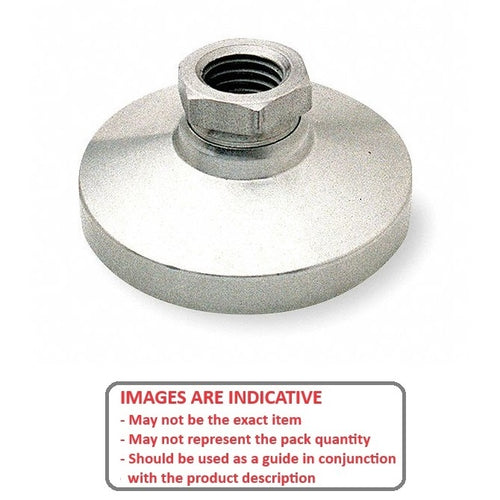

Mounts - Levelling Studded - Swivel - 303 Stainless - StandardStandard 303 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M6 (6x1mm)
- Base Diameter (D)
19.0
mm
(Equiv. 0.748 in.) - Foot Height (C)
13.0
mm
(Equiv. 0.512 in.) - Thread Length (F) 25.0 mm
- Base Height (E) 3.00 mm
- Overall Height 38.0 mm
- Load Rating 315 Kg
- Hex Flats (B) 10.000 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 6301K86
- MSM0315M06S3
- MLPSS5
- MLPSS-5
