MSM-120M-051-CGCAB - Datasheet
MBA
Category Information

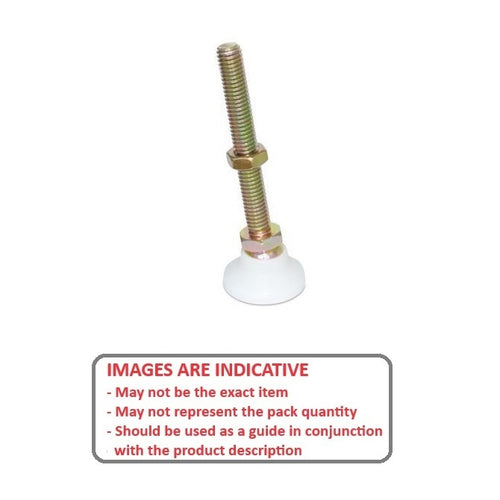

Mounts - Levelling Studded - Swivel - Gold Chromate - Acetal BaseAcetal Base Gold Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Base Diameter (D)
48.0
mm
(Equiv. 1.89 in.) - Foot Height (C)
33.0
mm
(Equiv. 1.299 in.) - Thread Length (F) 51.0 mm
- Base Height (E) 9.00 mm
- Overall Height 84.0 mm
- Load Rating 315 Kg
- Finish Gold Chromate
- Pad Material Delrin
- Hex Flats (B) 19.000 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSM0318M12GA
- MLP95
- MLP-95
