MSF-048F-CCC - Datasheet
MBA
Category Information

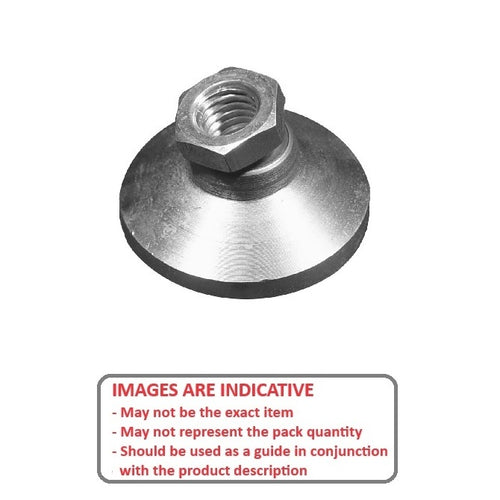

Mounts - Levelling Socket - Swivel - Clear Chromate - StandardStandard Clear Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 10-32 UNF (4.76mm)
- Base Diameter (D)
19.1
mm
(Equiv. 0.752 in.) - Foot Height (C)
13.5
mm
(Equiv. 0.531 in.) - Min. Thread Depth 4.3 mm
- Base Height (E) 2.80 mm
- Load Rating 315 Kg
- Steel
- Finish Clear Chromate
- Hex Flats (B) 9.53
- Material Clear Chromate
Product Compliance and Data
Additional Resources
Cross References
- 6103K74
- MSF0320048FCC
- LS-5
- LS5
