MSM-048F-025-CCC - Datasheet
MBA
Category Information

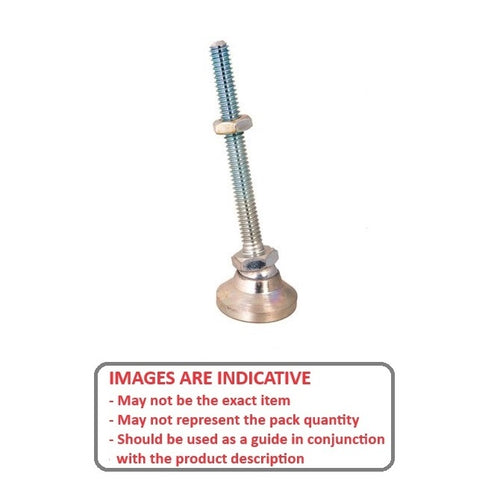

Mounts - Levelling Studded - Swivel - Clear Chromate - StandardStandard Clear Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 10-32 UNF (4.76mm)
- Base Diameter (D)
19.1
mm
(Equiv. 0.752 in.) - Foot Height (C)
13.5
mm
(Equiv. 0.531 in.) - Thread Length (F) 25.4 mm
- Base Height (E) 2.78 mm
- Overall Height 38.9 mm
- Load Rating 315 Kg
- Finish Clear Chromate
- Hex Flats (B) 9.525 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6111K74
- MSM0320048FCC
- TLS-00
- TLS00
