MSM-127C-102-CGCAB - Datasheet
MBA
Category Information

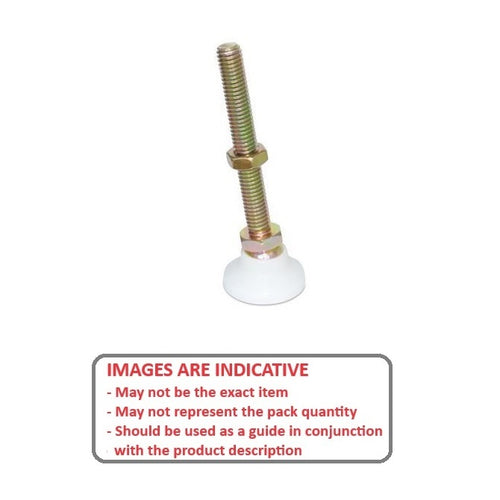

Mounts - Levelling Studded - Swivel - Gold Chromate - Acetal BaseAcetal Base Gold Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D)
47.6
mm
(Equiv. 1.874 in.) - Foot Height (C)
31.8
mm
(Equiv. 1.252 in.) - Thread Length (F) 101.6 mm
- Base Height (E) 9.53 mm
- Overall Height 133.4 mm
- Load Rating 315 Kg
- Finish Gold Chromate
- Pad Material Delrin
- Hex Flats (B) 19.050 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSM0320127CLGA
- TD25
- TD-25
