BV10-03150-3V1250 - Datasheet
MBA
Category Information

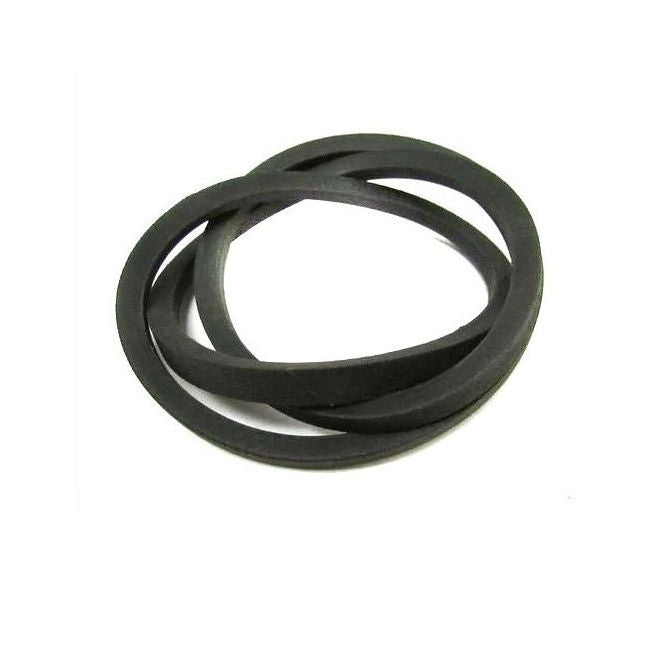

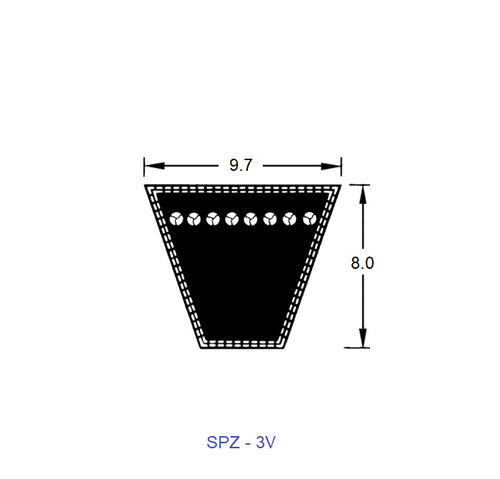

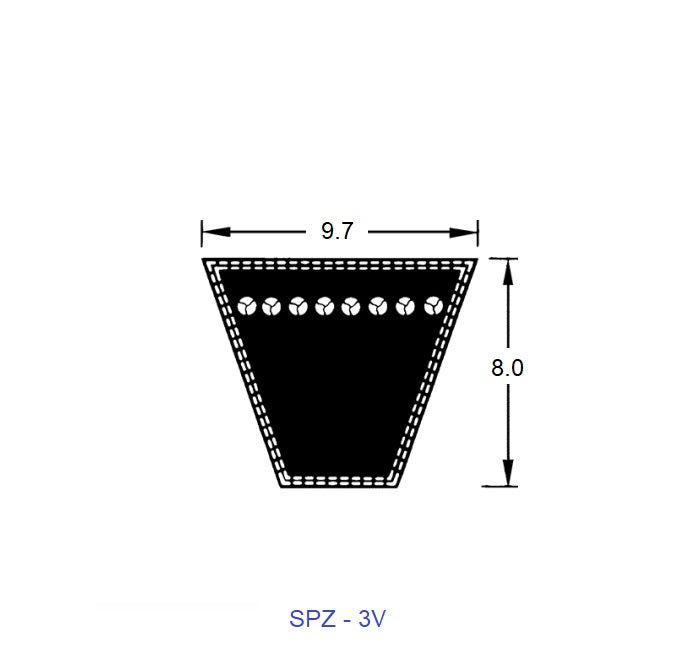

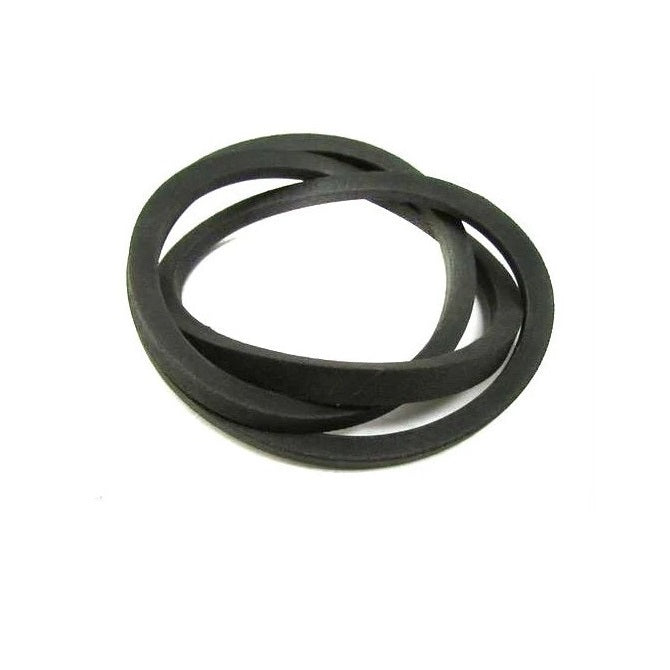

Belts - Wedge - 9.7 x 8.0mm - SPZ 3VSPZ 3V 9.7 x 8.0mm Wedge Belts. Miniature and small belts. 9.7mm Top Width x 8.0mm Height.
- Wedge belt are specialized V-belt designed with a more compact, wedge-shaped profile to transmit higher power in smaller, space-constrained drive systems.
- Designed to offer greater load-carrying capacity and efficiency compared to standard V-belts, Ideal for demanding applications like automotive engines, compressors, and industrial machinery.
- Also known as a narrow V-belt

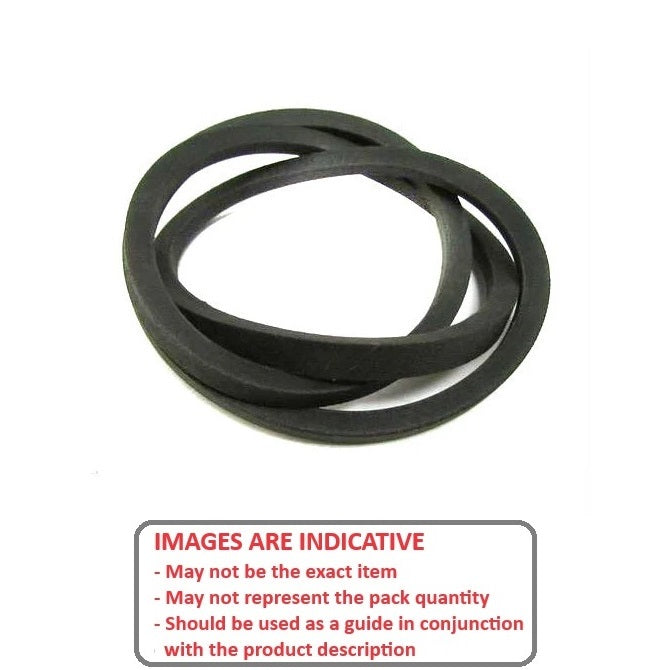

- Sizes are nominal and may vary slightly.
Product Data
- Pitch Length
:
3149.9
mm
(Equiv. 124.012 in.) - Type Standard - Wedge Belt
- Re-Inforcement Polyester
- Material Natural Rubber - Fabric Jacket
Product Compliance and Data
Additional Resources
Cross References
- BTQ-3V1250
- BTQ3V1250
