BV22-03149-CX124 - Datasheet

MBA

Category Information

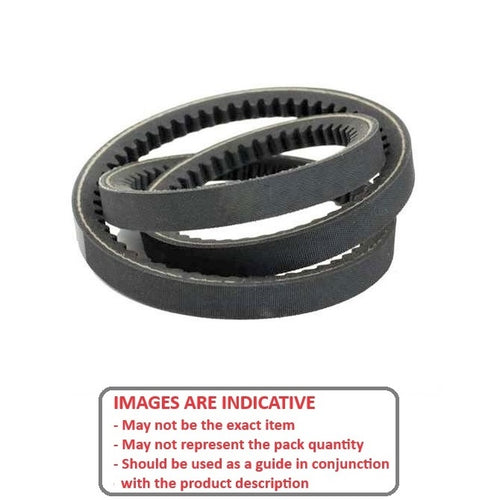

Belts - Vee - 22.2 x 13.5mm Notched CX

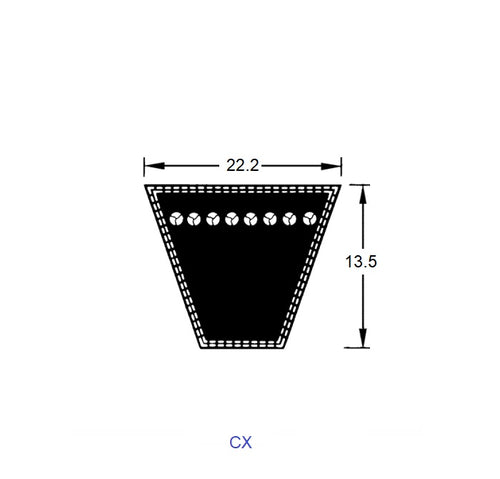

22.2 x 13.5mm Notched CX Vee Belts. 22.2mm Top Width x 13.5mm Height.

  • An expanded range may be available on special order. Please enquire.
  • Sizes are nominal and may vary slightly.

Product Data

  • Inside Circumference : 3149.6 (124.0 in.) mm
    (Equiv. 124 in.)
  • Type Cogged V-Belt
  • Re-Inforcement Polyester
  • Material Natural Rubber - Raw Edge
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • BTQCX124
    • BTQ-CX124
