CSN-0318-050 - Datasheet
MBA
Category Information

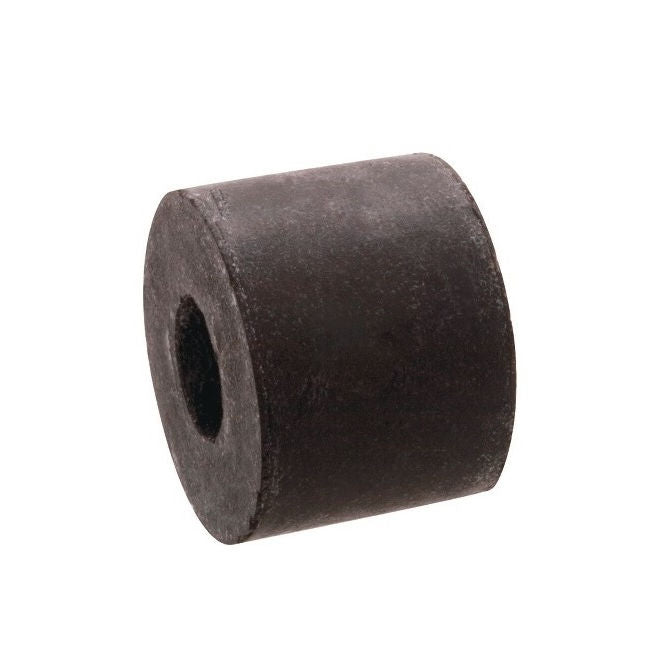

Mounts - Bumpers - Neoprene SpringsNeoprene Springs Bumpers Mounts. Neoprene elastomer springs have proven to be the safest, most efficient material for punching, stamping and drawing dies.
- An expanded range may be available on special order. Please enquire.
- Major advantages include high loads, increased durability, better performance, no maintenance and long life.
Product Data
- Outside Diameter (A)
:
31.80
mm
(Equiv. 1.252 in.) - Inside Diameter (B)
13.5
mm
(Equiv. 0.531 in.) - Free Length (L)
50.0
mm
(Equiv. 1.969 in.) - Spring Rate 114.0 N/mm Deflection +/- 20 Perc
- Max. Rec. Deflection 17.53 mm
- Approx. Load at Max Deflection 170.2 Kg
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- BES3532
- BES-3532
