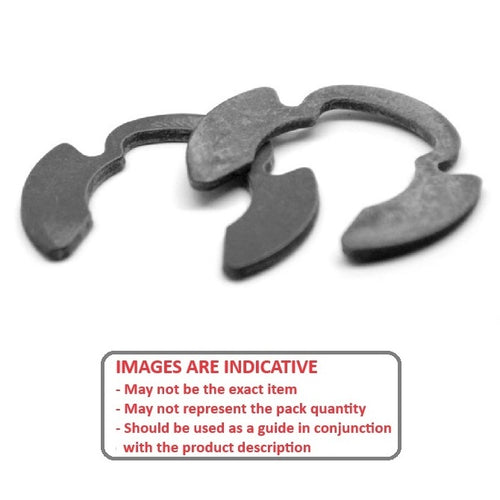

ECL-0277-0318-C-KR - Datasheet

MBA

Product Data

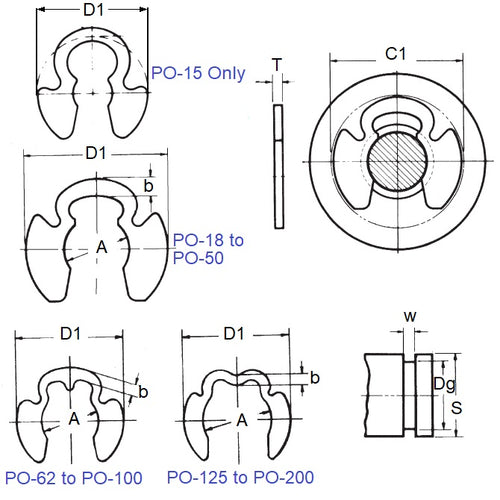

• Minimum Rec. Shaft Dia (S) : 31.75 mm _{+ 5.08 / - 0.00}
  (Equiv. 1.25 in.)
• Groove Dia. (Dg) 27.69 mm _{+/- 0.252}
  (Equiv. 1.09 in.)
• Clip Thickness (T) 2.36 mm _{+/ - 0.076}
  (Equiv. 0.093 in.)
• Clip OD Loose (D1) 45.72 mm
• Groove Width (W) 2.62 mm
• Maximum Rec. Shaft Dia (S) 36.83
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• Waldes 5304-125
• 98420A161
• NoCor PO-125
• Rotor Clip PO-125
• PO125
• 5304125
