W0318-CSW-C - Datasheet
MBA
Category Information

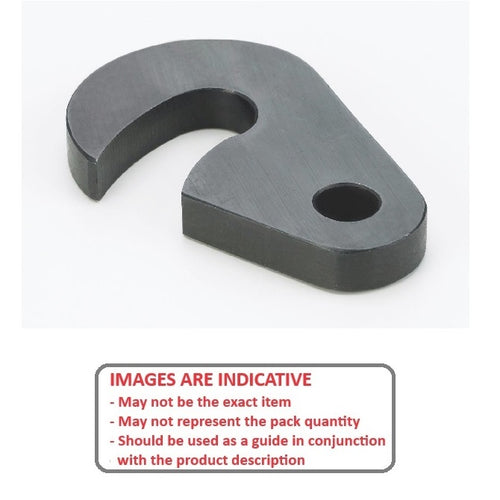

Washers - C - SwingSwing C Washers. Cold finished steel, hardened and ground with a black oxide finish.
- C washers gives the possiblity to adjust, remove or modfiy spacing without removal of the fastener.
- Specialized washers used in jigs, fixtures, and machinery for clamping. Design that allows it to swing out of the way after the clamping screw is loosened, facilitating easy workpiece insertion and removal.
Product Data

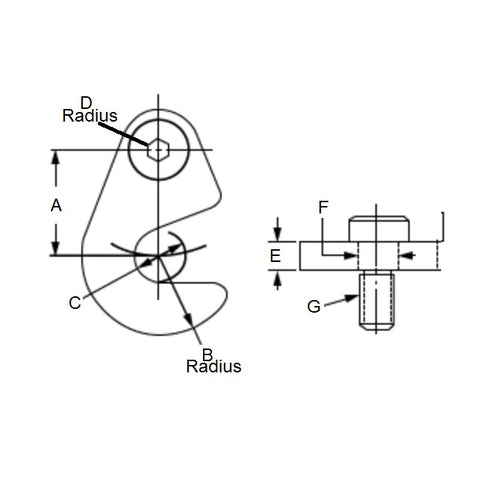

- Centre Hole to Centre Groove (
:
31.75
mm
(Equiv. 1.25 in.) - Groove Radius (B)
25.40
mm
(Equiv. 1 in.) - Groove Diameter (C)
30.94
mm
(Equiv. 1.218 in.) - Hole Radius (D) 12.700 mm
- Thickness (E) 9.525 mm
- Bolt Hole (F) 9.525 mm
- Screw Size 5/16-18
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- SCW2
- SCW-2
