RRT-125-S02 - Datasheet
MBA
Category Information

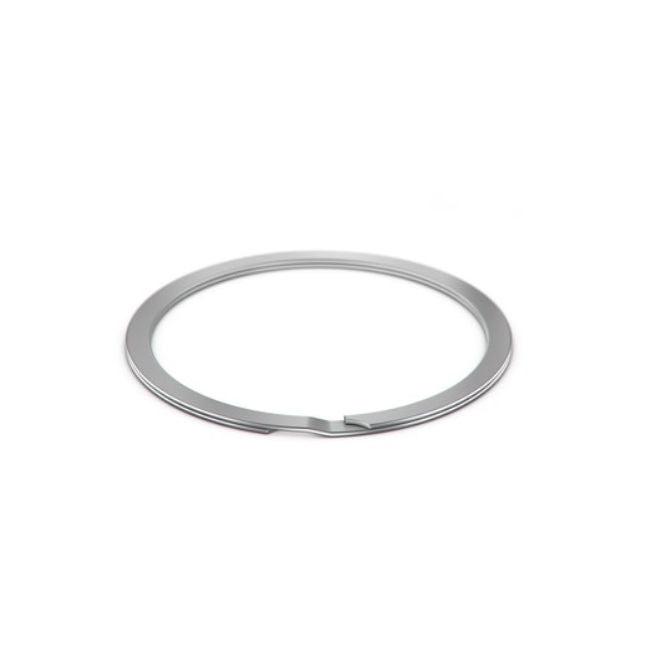

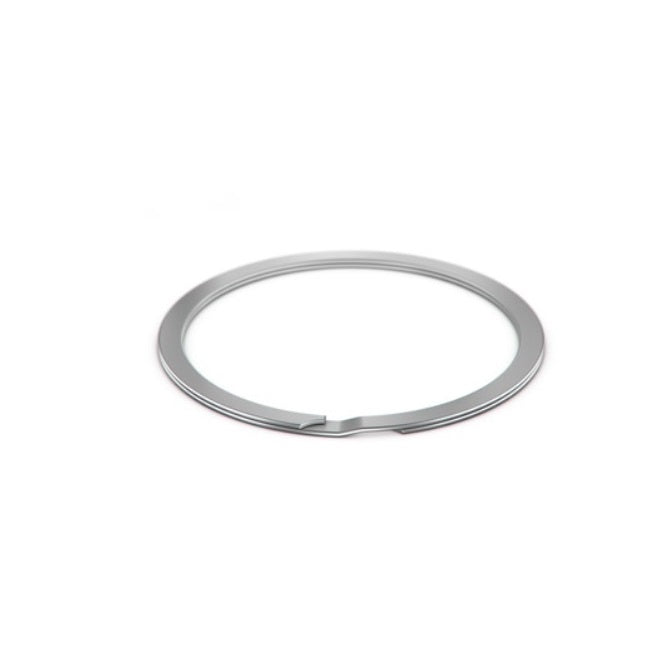

Retaining Rings - Internal - Spiral Rings - Medium-Heavy - Stainless SteelStainless Steel Medium-Heavy Spiral Rings Internal Retaining Rings. Includes Series AMI / WHT / Spirolox RRT - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Originally designed to fit NAS50-51 grooves, this series is a popular OEM specification.
- This two/three turn design is easier to install than the heavy duty RRN option.
- Equivalent to Associated Spring: AMI, Smalley: WHT, Spirolox and Ramsey: RRT

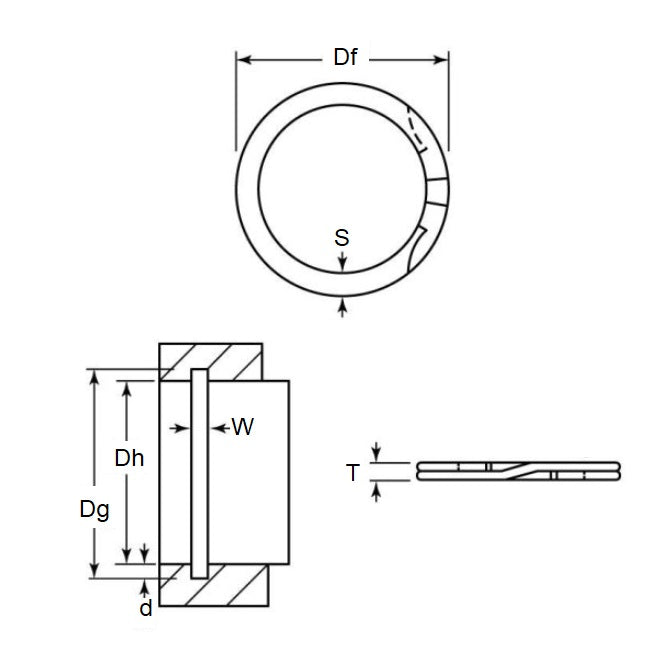

Product Data
- Housing Bore (B)
:
31.75
mm
(Equiv. 1.25 in.) - Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.) - Groove Dia. (Dg)
33.53
mm
(Equiv. 1.32 in.) - Approx. Loose Circlip OD (Dr) 33.72 mm + 0.38 / - 0.00
- Radial Wall (S) 2.36 mm +/- 0.10
- Groove Width (W) 1.47 mm +/- 0.10
- Approx. Loose Clip ID 29 +/- 0.05
- Groove Depth (d) 0.89
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Associated Spring AMI-125-S02
- Smalley WHT-125-S02
- WHT125S02
- AMI125S02
